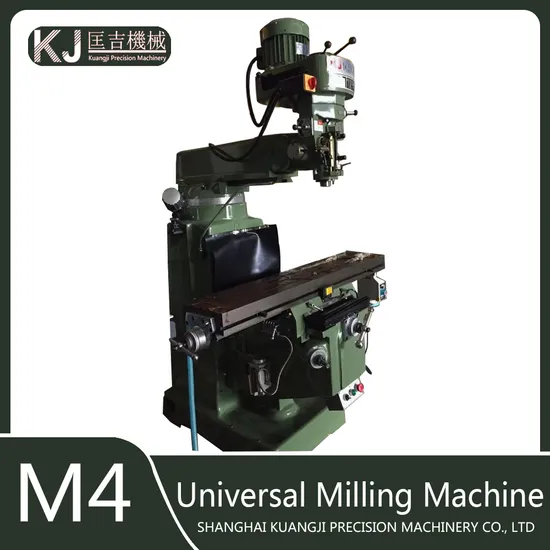

M4 Vertical Turret Type Metal Milling Machine, Taiwan Spindle

US$1.00-2,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
M4
Type
Tool Milling Machine
Object
Tool
Structure
Turret Type
Milling Cutter Type
Various Cutting Tools
Milling Cutter Structure
Various Structures
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Negotiate
Specification
1800mm*1800mm*2300mm, 1.2T
Trademark
Kuangji
Origin
Shanghai

Product Description

This machine can be widely used in the machining plane and any Angle inclined plane, can be milling slot, drilling, reaming, using special tools can also boring. The milling head can be rotated 90° left or right, 45° forward or backward, and the ram can be rotated 180° horizontally. The spindle has a high speed, and has a wide speed range, can realize automatic feed and overload protection safety device. The spindle sleeve and the machine tool guide rail are specially treated, and there are wear-resistant pieces between the table and the saddle, the saddle and the lifting table guide rail, which can reduce the friction between the sliding guide rail pair, extend the service life of the machine tool, and have a satisfactory appearance and a good structural design, which is an ideal universal equipment for metal processing.
model M3/ M4 M5/ DM6
name
Workbench area 1270*254 1370*305 1524*305
Worktable load (kgs) 300 350 420
T-shaped slots in work (number size spacing) (mm 3-16*65
Left and right stroke (X) (mm) 760 860 1120
Front and rear travel (Y) (mm) 380 390 430
Up and down stroke (Z) (mm) 430 450 550
X-axis screw specification Tr32x5-7e
Y-axis screw specification Tr32x5LH-7e
Z-axis screw specifications Tr32x5LH-7e
Spindle taper R8/NT30 R8/NT30 NT40
Spindle stroke (mm) 127
Spindle speed 16speed(steps)/variable
Spindle feed (mm) 0.076/0.003 0.38/0.0015 0.203/0.008
Main spindle low speed (r/min) 66,110,175,270,550,930,1460,2270
Main spindle high speed (r/min) 132,220,350,540,1100,1860,2920,4200,4540/ 60,5400
Spindle diameter 85 85 105
Distance from spindle center to column surface (minimum mm) 120 130
Distance from spindle center to column surface (maximum mm) 720 630
Distance from spindle nose to workbench (minimum mm) 100/110 120
Distance from spindle nose to workbench (maximum mm) 450/460 480 630
Voltage (V) 380
Frequency (Hz) 50/60
Head motor 3HP/2.2KW 5HP/3.75KW
Cooling motor 1/8HP
Lifting motor 1/2HP(only DM6 have)
Machine net weight 1200kg/1300kg 1450 kg 1850kg
