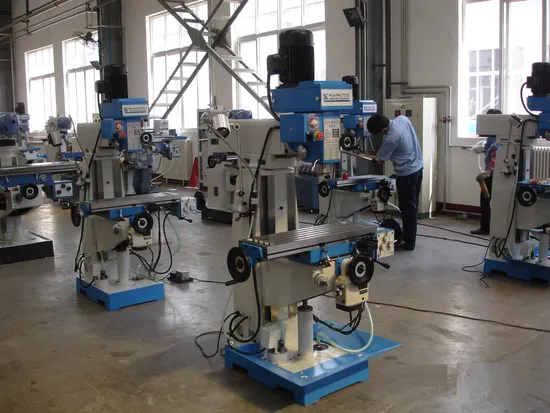

Swivel Head Knee Type Vertical Metal Drilling Milling Machine

Product Description

The main performance characteristics: 1 Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. With v-belt spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch Application: Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department. Product Parameters
Product main technical Specifications:

SPECIFICATIONS	Units	ZX7550CW
Max. drilling dia.	mm	50
Max. end milling dia.	mm	100
Max. vertical milling dia.	mm	25
Max.boring dia.	mm	120
Max. tapping dia.	mm	M16
Distance between spindle nose and table surface	mm	90-490
Spindle taper	-	MT4( V/ H)
Spindle speed range	rpm	40-1400(V) 80-1300(H)
Spindle travel	mm	120
Table size	mm	1000*240
Table travel	mm	600*240
Table feed speed	mm/min	X: 15-490
Main motor power	kw	1.5/2.2( V)2.2( H)
Machine weight	kg	1000
Overall dimensions	mm	1400*1300*2080

---
