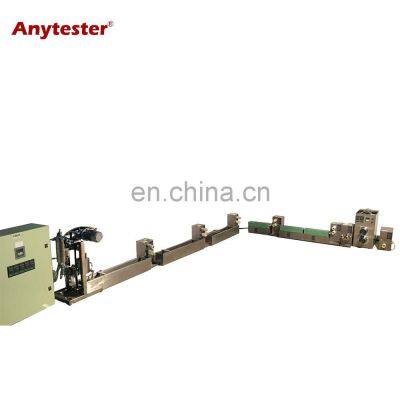

| Model | AT232F |
Solution tank | Volume: 1L Material: 316L stainless steel With rapid-mountable cover With solution output port and nitrogen inlet port Optional ceramic heating jacket with temperature range from room temperature to 180℃ and heating rate: 0.5KW |
Dosing pump | Specification: JR1×0.6cc/rev With precise gear pump, nominal flow 0.6cc/rev Optional ceramic heating jacket with temperature range from room temperature to 180℃ and heating power: 0.5KW |
Driving system for dosing pump | Worm reducer and single-phase motor Rated power: 180W Reduction ratio:1:60 With driving bar and spindle nose |
| Solution pipe | Material: 316L stainless steel |
Die head part | Material: 316L stainless steel Including seat and assembly seat for dosing pump |
| Gooseneck pipe | Material: 316L stainless steel |
Spinneret parts | Material: 316L stainless steel Diameter of spinneret nut: ¢20mm Material of spinneret nut: tantalumtim Number of holes: 40 Hole diameter: ¢0.1mm Including distributing plate and ¢20mm filtering screen O-type rubber sealing ring |
Coagulating bath | Material: 316L stainless steel Size: 1000×100×160mm(L×W×H) Including two rods for pressing filament |
Cold roll | Two-roll drafting Roll material: 316L stainless steel or nylon Roll size: ¢50×80mm Motor power: 25W Reduction ratio: 1:10 Drive mode: straight roll and diagonal roll with oblique angle of ±6° Speed range: 2~40m/min Step-less adjustable by rotary knob and display of rotation speed |
Washing bath | Material: 316L stainless steel Size: 1000×100×160mm(L×W×H) Including two rods for pressing filament Heating system is optional |
Heat drawing | Type: non-contact Length: 400mm Temperature range: room temperature~150℃ Heat power: 250W Temperature sensor: PT-100 |
Thermal-setting | Type: non-contact Length: 800mm Temperature range: room temperature~150℃ Heating power: 250W Temperature sensor: PT-100 |
Hot roll | Two-roll drafting Roll material: 316L stainless steel Roll size: ¢100×80mm Motor power: 25W Reduction ratio: 1:10 Speed range: 2~40m/min Step-less adjustable by rotary knob and display of rotation speed Temperature range: room temperature~150℃ |
Winder | Speed range: 2~40m/min Winding roll: ¢50×80mm Traversing travel: 55mm |
| Power supply | 200V, 50Hz |
| Packaging | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. |
Payment Item | T/T | EXW | 30% T/T in advance,paid the balance before the payment |
| FOB | |||
| CFR(C&F) | 30% T/T in advance,paid the balance again the copy of L/C | ||
| CIF | |||
| L/C | L/C amount abve 50,000 usd, we can accpet L/C at sight | ||
| West Union | Amount lower than 50,000 USD | ||
| Delivey Time | 7~10days after receiving payment for one container | ||
