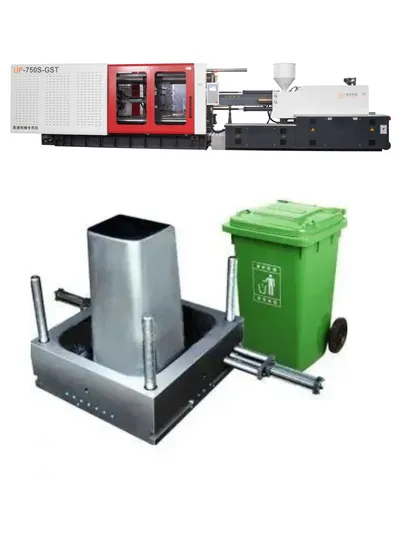

Best Selling Plastic Trash Can Making Machine Garbage Bin Injection Molding Machine

Product Description

Our Injection Molding Machine Manufacturer Localed in Ningbo City, near shanghai .It is a manufacturer Specialized for injection molding machine and injection mould ,and offer auxiliary equipment also .

servo injection molding machine range: clamping force from 70tons to 3000tons, infaction weight from 40000g.Machine series:
A) servo Injection Molding machine
B) PVC injection molding machine;C) PET injection molding machine;D) Double Color injection machine;E) Full hydraulic injection molding ;F) All electric injection moulding machine; full injection molding machine;G) Energy saving injection moulding machine :H)High speed injection molding machine I) Variable Displacement pump injection machine J) Standard motor injection molding machine

	Model UP-750T
Injection Unit	A	B	C
Screw diameter (mm)	100	110	120
Shot Volume (cm3)	3636	4400	5236
Injection weight (g)	3306	4003	4765
injection pressure (Mpa)	184	152	128
Screw speed (rmp)	110
Clamping Unit
Clamping force (KN)	7500
Open stroke (mm)	980
Max Mold height (mm)	1000
Min Mold height (mm)	400
Space between tie bars(mm)	980*950
Ejector force (KN)	185
Ejector stroke (mm)	260
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	37+30(39.5+36.7)
Heating power (KW)	56.7
Machine dimension (M)	10.8*2.3*2.9
Machine weight (T)	42
Oiltank cubage (L)	1600

FAQ
1: Are you a trading company or a manufactory?
We are a manufactory, we supply the factory price with good
quality, welcome to visit !
2:Do you have QC or any safety standards for your plastic injection molding machine?
yes,we have established a highly strict quality control department to guanrantee good quality.
3:Why choose our plastic injection molding machine?
High quality with competitive price
4::How about quality control in your factory?
"Quality is first, Customers are friends".
5:Can you help us with the shipment of this machine ?
Yes , with honor ,we have our special shipment company which
already cooperate

---
