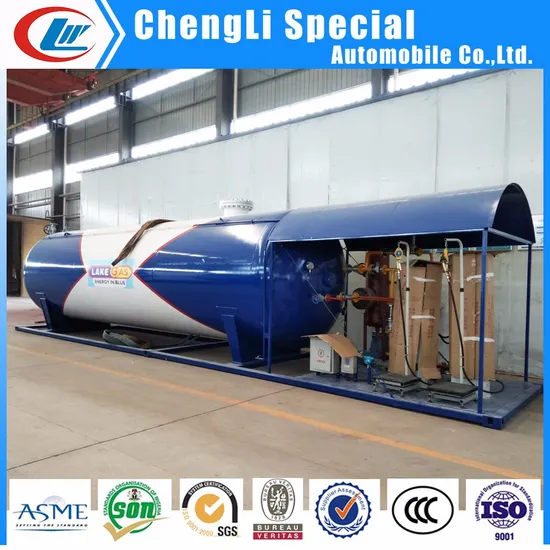

10tons LPG Skid Tank Mounted Filling Station 20cbm with Double Nozzle Dispenser

Product Description

10tons LPG Skid tank mounted filling station 20cbm with double nozzle dispenser
Technical parameters for lpg tank skid

Item No.	Parameters
Tare Weight (kg)	5050 kg
Filling Capacity (kg)	7980 kg
Thickness of Shell (mm)	12
Thickness of Endplate (mm)	12
tank cylinder diameter (mm)	2100
External Dimensions (mm) (length×width×height)	6154*2124*2714
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas
Design Pressure	1.77MPa ( 256.65 Psi)
Corrosion Allowance	1 mm
Medium Density	420 kg/ cbm

1)lpg tank skid capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.
2)lpg tank skid material
Q345R Q370R SA516 16MnR
3)lpg tank skid production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
4)Main parts of lpg tank skid
pump, motor, compressor, cut-off valve, safety valve, alarm system, lpg dispenser or filling scale, water spraying system or sunshade, magnetic level gauge (rochester gauge), rotor gauge, temperature gauge, pressure gauge, lpg skid control panel, mass flow meter...

Accessory list for lpg tank skid

Item	Model Number	Quantity
LPG Tanker	20cbm/ 20liters	1 piece
Electronic cylinder Filling machine	BCS-150	1 unit
Filling Pump	YQB15-5	1 Piece
Motor	5.5KW	1 Piece
Dispenser	LPG Dispenser RT-LPG112B	1 Piece
Pipes	/	1 sets
Cut-off Valve	J41N-40 DN50	8 Pieces
Safety Valve	A42F-25 DN50	1 Piece
Pipe Safety Valve	A21F-25 DN15	1 Piece
Ball floating level gauge	UZFAL-2.5RF2640-0.50	1 Piece
Discharging pipe	L=4M DN50/DN25	1 Piece
Shock-absorbing Tube	L=500mm DN50	2 Pieces
Flange	2.5MPaDN15	14 Pieces

lpg tank skid accessories
1) lpg skid tank pump

2) lpg skid station filling scale or lpg skid station filling dispenser
3)LPG cylinder valve filling nozzle/gun for F type 27mm valves in Nigeria market
Production Flow



Company review About our company
ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province,China. SuiZhou is near to wuhan, Xiangfan and Shiyan,with these cities, there is a Golden Car Manufacturing hallway along the 318 highway. Among that, SuiZhou is famous as the capital of Chinese special automobile manufactory.
Since being founded in 1998, ChengLi has continually worked to improve its production processes and production tools. Qualified personnel ensure the highest standards of quality control in the manufacture of the principal components and the final assembly. Covering an area of 8 hectares more than 5000 vehicles are produced each year. Our company has independent export right, the product had delivery to many countries around the word. Take 2008 for example, the amount of export reach 2000 units. The registered Labels CLW is well known in these years.

Based on high quality and advanced technology, the leading varieties include more than 200 types of trucks such as water truck, garbage truck, fecal and sewage suction truck,refuse compactor, fuel tank, aerial platform, truck with crane, dump truck, van truck, trailers, fire-fighting truck, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, LPG tank, etc. All products have passed the ISO9001-2000 and t 3C(China Compulsory Certification) standard.

10tons LPG Skid tank mounted filling station 20cbm with double nozzle dispenser

If you are interested in our trucks, pls contact me, I will send our best quotation to you.

contact person: Natacha Zhou
Tel:+86-135 8130 9668

---
