Product Description
Product Description

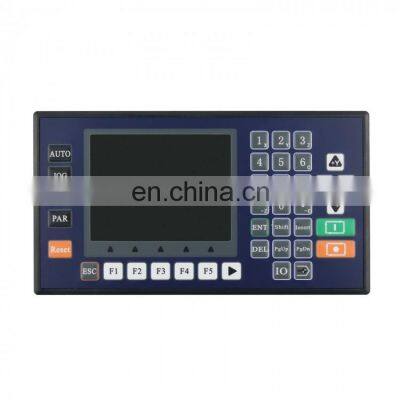

TC5540V 4Axis TC5530V 3Axis TC5520V 2Axis TC5510V 1Axis 3.5"CNC Motion Controller For CNC Router Servo Stepper MotorProduct Description Description:It is an upgrading version of TC55. It is equipped with a 3.5-inch color screen, RS485 communication, Chinese/English Switch, and USB connection. Boot picture can be set as pictures or company name as you will. It is highly reliable, highly accurate, low noise, and easy to use.Technical Specifications:- Minimum data unit 0.001 mm- Maximum data size ± 99999.999mm- Maximum Speed: 9000mm/min (pulse is 0.001mm)- Maximum pulse output frequency 150KHz- Axis: 1, 2, 3 or 4 (X, Y, Z, C). X, Y, Z, C axis can conduct linear interpolation, X, Y can do circular interpolation.- Electric Gear: numerator: 1-99999 denominator: 1-99999- System main functions are automatic, manual, program editing, system parameters, self-check, settings, etc.- Maximum 480 commands each program- USB Connection and upgrade- Stop and Start of Spindle motor- PLC Extension- I/O Extension- Isolated I/O port- Self-defining of I/O port- Chinese/English panel display- Freeboot picture settingConversational Programming Code:The conversational programming method automatically leads you to finish programming.Programming Function Introduction:Programming Code: InterpretationIncremental: Incremental ProgrammingAbsolute: Absolute ProgrammingPause: Pause unless a certain condition is met, then skip to command calledOutput: Define on and off of output port, ex. Stop and start of the spindle motorRepeat: Go back to command called and repeatClockwise: Clockwise circular interpolation (Incremental programming)Counter-clockwise: Counter Clockwise interpolation (Incremental programming)Delay: Define the time of delayJudge: Judge if a certain condition is met and skip to command calledSkip: Whenever this command is executed, unconditionally skip commanding called.Fast: Fast positioningMachine Zero: Go back to machine zeroSpeed: Axis moves at a certain speed and will stop when certain condition metRegister: When this command is executed, the number on the main interface and the manual interface will be sent to this number.Count: When this command is executed, the number on the main interface and manual interface will increase by 1 or decrease by 1.Subprog Call: Subprogram CalledSubprog Start: Subprogram StartedSubprog End: Subprogram EndedCoordinate: Set the current position as new coordinatesEnd: When the commands cannot be read, it will be considered as "End".Coordinating: This command is similar to Judge when the certain condition of coordinates is met, it will skip commanding called.PLC Judge: When a certain condition of PLC register value is met, it will skip commanding called.PLC Set: Set Register address and valuePackage Included:- 1 x Set of CNC Controller Detail Photo FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Samples arrived often need 3-5 days. Q3. Do you have any MOQ (minimum order quality)limit?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed an order?A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production. Q6. Is it acceptable to print my logo on the product?A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?A: Yes, we offer one-year warranty for our products. Q8: How to deal with the flaw?A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8% Packing&ShippingPackage: Normally we use the standard exporting packaging. We also can according to clients' request . Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.3. By Sea: Delivery from the Shanghai sea port . Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
