US$50.00-150.00
|
5 Pieces
(MOQ)
|
Basic Info.
Theory
Electric Apparatus
Range Conversion Type
AUTO RANGZ
Additional Measuring Item
Frequency
Product Color
Red and Grey
Product Size
110mm X 58.2mm X 10.8mm
Standard Accessories
Battery,Carrying Case
Standard Individual Packing
Blister, English Manual
Standard Quantity Per Carton
90 PCS
Standard Carton Measurement
528mm X 323mm X 400mm (0.068 Cbm Per Export Carton
Standard Carton Gross Weight
13.5 Kg
Transport Package
Carton with Foam Inside
Production Capacity
200PCS/Month
Product Description
Uni-t Ut71c Manual Digital Multimetro Intelligent Multimeter
I. Product Description of Uni-t Ut71c Manual Digital Multimetro Intelligent Multimeter
UT71C 39999 count is 4 3/4 Auto range True RMS digital multimeter with analog bar graph display full-featured, full-range overload protection and unique design, making it more superior performance of high-precision electrical measuring instruments.
II. Parameter of Uni-t Ut71c Manual Digital Multimetro Intelligent Multimeter
| Specifications | Range | Best Accuracy |
| Model | | UT71C | UT71D | UT71E |
| DC Voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.025%+5) | ±(0.025%+5) | ±(0.025%+5) |
| AC Voltage (V) | 4V/40V/400V/1000V | ±(0.4%+30) | ±(0.4%+30) | ±(0.4%+30) |
| DC Current (A) | 400μA/4000μA/40mA/400mA/10A | ± (0.1%+15) | ± (0.1%+15) | ± (0.1%+15) |
| AC Current (A) | 400μA/4000μA/40mA/400mA/10A | ± (0.7%+15) | ± (0.7%+15) | ± (0.7%+15) |
| Resistance (Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(0.3%+8) | ±(0.3%+8) | ±(0.3%+8) |
| Capacitance (F) | 40nF/400nF/4μF/40μF/400μF/4mF/40mF | ±(1%+20) | ±(1%+20) | ±(1%+20) |
| Frequency (Hz) | 40Hz-400MHz | ±(0.01%+8) | ±(0.01%+8) | ±(0.01%+8) |
| Temperature (°C) | -40 °C ~ 1000°C | ±(1%+30) | ±(1%+30) | ±(1%+30) |
| Temperature (°F) | -40°F~1832°F | ±(1.5%+50) | ±(1.5%+50) | ±(1.5%+50) |
| Power (W) | 2500W | | | ±(2%+5) |
| Features |
| Display Count | | 39999 | 39999 | 39999 |
| Auto Range | | √ | √ | √ |
| True RMS | | √ | √ | √ |
| Bandwidth (Hz) | 100KHz | √ | √ | √ |
| Duty Cycle | 10% ~ 90% | ±(1%+30) | ±(1%+30) | ±(1%+30) |

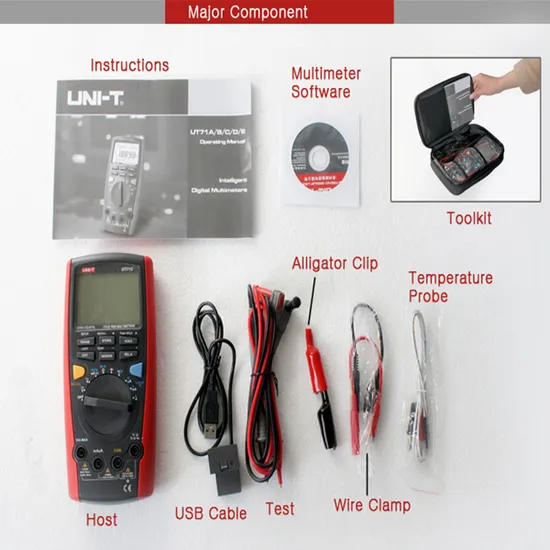

III. Detailed Photos
IV.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
V.Customer Visit
VI.Exhibition
