Industrial Sewing Machine Automatic Sewing Machine Pocket Setter Light Heavy Fabric Jeans Pocket Sewing Machine

Product Description

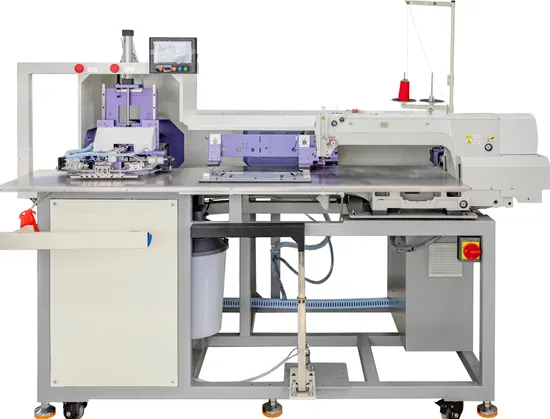

Automatic Pocket Sewing Machine

This machine is specially for designed for sewing all kinds of pockets, without ironing, it is full automatic iron free pocket sewing machine.
It is applied for Jeans, knitwear, shirts, work clothes, leisure wear, uniforms and back pockets, and so on, it can be customized.
Depending on fabric thickness and varied processes, select the most suitable sewing machine head from the following options:
1. Japanese Brother series BAS-311H pattern sewing head, 430HS bartecking machine head, 7300 Lockstitch head;
2. Japanese JUK 210EN series pattern seweing head and DDL-8000A lockstitch;
3. Japanese Mitsubishi series G type 1010, 2516 pattern sewing head;
4. China brand pattern sewing head.
Special suggestions and instructions: The DDE-8000A and Brother 7300 head just only suitable for sewing medium and thin materials, while the knotting machine head and pattern machine head can be compatible with sewing thick and thin materials. After installing the presser foot, perfect sewing effect can be achieved.
With below Features:
1. Automatic starting, sewing, thread trimming, and material receiving.
2. Output can be counted at the same time as receiving material.
3. Capable of sewing various pocket sizes and suitable for multiple fabric types.
4. Stainless steel operation platform guarantees smooth sewing and easy maintenance.
5. Any shape or pattern of pockets can be sewn with this machine by simply changing the molds.
6. Computer program control allows for editing and saving diverse patterns.
7. Servo + pneumatic drive provides robust stability.
Specification:

Min Pocket Area	45mm*45mm
Max Pocket Area	240mm*280mm~280mm*280mm
Max Speed	3000~3600RPM
Stitch Length	0.1-12.7mm
Pattern quantity in memory	9999+USB memory
Production Capacity	240~350pcs per hour
Power	220V 50/60Hz, 1.25KW
Air Pressure	5 Bar
Air Consumption	230L/min
N.W / G.W	440KG/ 540~550KG
Machine Size(L*W*H cm)	L170*W145*H165cm
Package Size(L*W*H cm)	L190*W165*H185cm
