Product Description
Product Description

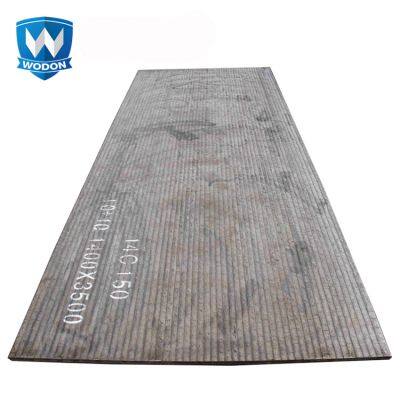

Product Descriptionhigh hardness 58-63 HRC wear resistant composite welded wear steel plate Wodon wear plates are manufactured by welding one or multiple wear resistant layers on a medium or low carbon steel base plate.The overlay alloy has a high amount of chromium carbide hard particles which makes the plate have good wear and impact resistance. Overlay thickness range: 3-25mmWear plate size: 1400*3000,1400*3400, 1400*3500, 2100*3500, customized.Product Namehigh hardness 58-63 HRC wear resistant composite welded wear steel plateBrandWodon.Base PlateQ235/Q345.Hardfacing layerHigh chromium high carbide overlay.Chemical CompositionC(%): 3.0-5.0 ,Cr(%): 25-40.MicrostructureThe carbide (Cr7C3) volume fraction on the microstructure is above 50%.HardnessHRC58-65.Surface TreatmentHardfacing,clading,coated.TechniqueHardfacing,open arc welding,submerged arc welding.Wear ResistanceHigh wear resistance,30 times higher than low carbon steel and 12 times than heat treated steel.Impact ResistanceMedium.Flatness tolerance±3mm/m.Thickness toleranceUniform overlay thickness, with tolerance within 0-0.5mm.Main Thicknesses3+3,4+4, 5+56+4,6+5,6+6,6+88+4,8+5,8+6,8+7,8+810+4,10+5,10+6,10+7,10+8,10+9,10+10,10+2012+4,12+5,12+6,12+7,12+8,12+10,12+11,12+1214+6,14+8,14+10,16+6,16+8,16+1018+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10Customized.Plate SizeOpen arc welding wear plate:1400*3400mmSubmerged arc welding wear plate:1400*3000mm,1400*3500mm, 2100*3500mm.Customized.Place of OriginChina.ApplicationMining,Steel,Cement,Power,Port,etc. Wear Components Wodon wear plates are used to make many complex wear parts to be positioned in high wear places.We have several equipment to transform our plates: six sets of plasma cutting machine , 4 bending machines and pressing machines,with high processing capacity operated by engineers and technical experts, we can provide wear plate cutting, bending, bolting, punching and welding according to customer's drawings.1.Drilling HolesStraight holes and Countersunk holes.2.Bolt embedded welding in the backEmbedding the Pre-processed bolt in the back of wear plate.3.BendingWodon wear plate can be cold formed and made into curve or cone.4.WeldingWodon wear plate can be welded and assembled into kinds of wear parts. Wear pipe, Elbow, Square to round transition We also introduced in our factory automatic welding equipment for pipes (internal and external) meeting the increasing demand for small diameter wear pipes.Wear pipes1. Steel pipe with regular base material + overlay, pipes are welded with our automatic welding machine resulting in good shaped and flat surface pipes.2. Bending the wear plate into round pipes3. Assembling the wear plate into square pipesAutomatic welding, metallurgical bonding, available to weld the maximum pipe diameter of 80mm and maximum pipe length of 3000mm. Wear elbowWeld directly on the elbow wallusing wear plate to make lobster back bendwear plate used to make tubeOur Advantages Quality Assurance: 25-40% high chrome content, carbide (Cr7C3) volume fraction above 50%, 58-65HRC, smooth surface, high wear resistance. Professional: Many experienced surface engineering professionals, solid technical knowledge and R&D capacity. OEM&ODM: Customized orders are available. Certificates: ISO9001, OHSAS18001, ISO14001, ASTM G65 test report, third party test report, etc. Company Information Jiangsu Wodon Wear Resistant Material Co. Ltd is located in Jiangsu city, China’s northern international shipping center. We are specialized in researching, developing and producing wear resistant products with many years experience in this field. We have more than 200 employees, with an annual output of 90,000 m² of wear plates and 8,000 tons of welding consumables. hardface wear plate workshop, open arc welding machine, bending machine, plasama cutting machine Testing equipment :Carbon-sulfur Detector, Portable Rockwell Hardness Tester, Portable Spectrograph, Desktop Rockwell Hardness Tester, Wet Sand Rubber Wheel Wear Tester, Metallurgical Microscope, Thickness Tester, Metallographic Grinding and Polishing Machine, Powder Test Sieve. welding wire warehouse, 150-250kgs welding wires packed in drum wear plate warehouse and sample roomCustomer visit Customer on site visit and exhibitionsPackaging & Shipping Packaging: Steel pallet, Non fumigation pallets,CustomizedPackaging Size: 1.4*3.4, 1.4*.3.0, 1.4*3.5, 2.1*3.5, customized.Delivery Detail: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. wear plate packagingAfter Sales Our company has a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer’s probems.If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.FAQ Q: Are you trading company or manufacturer ?A: We are manufacturer.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge.Q: What is your terms of payment ?A:30% T/T in advance ,balance against copy of BL.If you have another question, pls feel free to contact us as below:
Company Profile
Jiangsu Wodon Wear Resistant New Material Co., Ltd.
Jiangsu Wodon Wear Resistant New Material Co., Ltd. (China Wodon) is a manufacturing factory specializing in the development and production of wear resistant materials. We are headquartered in Jiangsu. There are over 500 staff, including 60 experienced R&D engineers. Our main products include: chromium carbide overlay (CCO) wear plates, flux cored hardfacing welding wires, etc. With independent intellectual property rights and a number of patents, it has a strong R&D and debugging team, which can provide customers with a streamlined service.Since its inception, with the huge investment and independent technology research and innovation, Wodon has been taking the lead in providing premium quality CCO wear plates, hardfacing welding wires as well as excellent repairing technique, all of which win trust and acceptance from our clients worldwide. Meanwhile, the company also employs many experts and professors in the wear resistant industry as the company's technical consultant to ensure strong technical strength and production capacity, we are dedicated to providing quality and cost-effective wear solutions that completely fulfill the requirements of clients.
