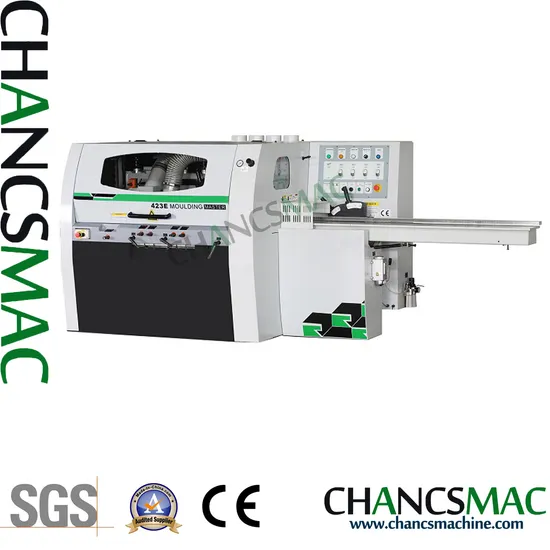

CNC 4-Moulder Machine

Product Description

Four Side Moulder 1.Introduction:
1. High quality on wood processing: Stepless variable speed and inverter used in feeding system. Wood procession quality is highly confirmed.
2. Individual motor for each spindle to ensure maximum cutting
3. Convenient adjustment: All spindles adjustment are in frond of machine in order to adjust conveniently.
4. Hard chromed treatment table surface can be more durable and stable.
5. Chain-wheel box applied to guarantee feeding short pieces smoothly.
6. Feeding performance is enhanced by bottom driving bed rollers.
7. Pneumatic pressure loading to top feed rollers separately adjustable for easy of feeding stock with variation in thickness.
8. Manual lubrication to worktable and carriage, easy to centralized control and short cut
9. Sealed safety enclosure in RMM416 avoid splashing of wood chips and insulate the noises. Good for safe protection.
2.Parameter:

Model		RMM413E	RMM416
Working width	Min	20mm	20mm
	Max	130mm	165mm
Working thickness	Min	10mm	8mm
	Max	100mm	100mm
Number of spindles		4pcs	4pcs
Speed of spindles		6000r/min	6000r/min
Cutting circles	Bottom spindle	Ø110- Ø 125	Ø110-Ø125mm
	Right spindle	Ø110- Ø 130	Ø110-Ø160mm
	Left spindle	Ø110- Ø 130	Ø110-Ø160mm
	Top spindle	Ø110- Ø 130	Ø110-Ø160mm
Spindle diameter		Ø 40mm	Ø40mm
Basic motor power	Bottom spindle	3KW/4HP	4kW/5.5HP
	Right spindle	3KW/4HP	4kW/5.5HP
	Left spindle	4KW/4HP	4kW/5.5HP
	Top spindle	4KW/5.5HP	5.5kW/7.5HP
	Feed	3KW/4HP	3kW/4HP
	Feed beam &fall	0.75KW/1HP	1.1kW/1.5HP
Total motor power		17.75KW/24.1HP	21.6kW/29.5 HP
Feed speed (Stepless variable )		10-33 m/min	6-24m/min
Dust pipe diameter	Bottom spindle	Ø100	Ø130mm
	Right spindle	Ø100	Ø130mm
	Top spindle	Ø120	Ø130mm
	Left spindle	Ø130	Ø130mm
Overall size(LxWxH) mm		2780x1420x1650	3230x1610x1700
Total weight		1950kg	2800kg

FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q:Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q:What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after inspection.
4. Q:What is the warranty time?
R: One year.
