Jugao 120 Degree Bending Angle Sheet Metal Folder Tool Automatic Brake Folder Machine Hydraulic Folding Machine

Product Description

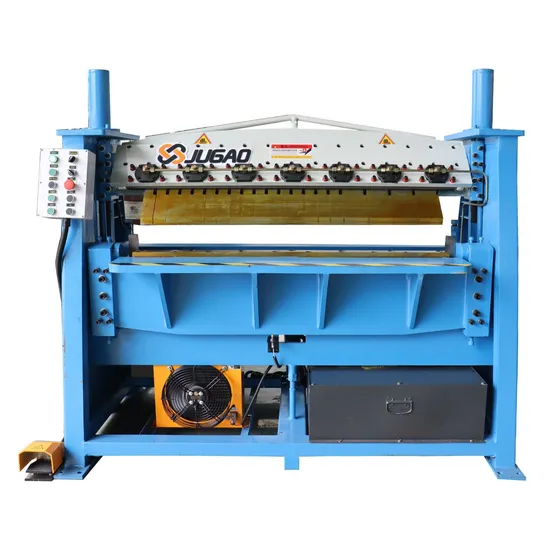

JUGAO 12~25 gauge Sheet Metal Finger Box and Pan Brake Bender CNC Hydraulic Folding Machine
The small-sized hydraulic folding machine, also known as FOLDING MACHINE or Pan Brakes, is a highly efficient and convenient machine. It is designed to meet the needs of various sheet metal processing industries.
This machine features manual button control, making it easy to operate. The upper mold is hydraulically clamped, ensuring a secure and stable working process. Moreover, the upper mold can be quickly replaced, and the segmented design allows for the removal of individual sections, making it suitable for bending different lengths of sheet metal.
The mold is made of 42CrMo material, which undergoes quenching treatment to achieve high hardness and long service life. The main motor is of the renowned German brand Siemens, ensuring reliable and stable performance. Additionally, the hydraulic valve is from the German brand Rexroth, guaranteeing precise and smooth operation.
The machine offers manual front feeding, and it can also be equipped with pneumatic automatic feeding for enhanced productivity and efficiency. This feature not only saves time and effort but also improves the overall processing quality.
In summary, the small-sized hydraulic folding machine is a reliable and efficient tool that combines advanced technology with user-friendly features. It is suitable for a wide range of applications and is an excellent choice for sheet metal processing operations.
Product Description
Hydraulic clamp and unclamp from foot switch, this allows one man to operate machine and hold material in both hands; Clamping is limited to 10mm increments for safety. Unclamp from foot switch. Rapid head adjustment allows easy change different size material, by moving the handles, Adjustable to suit special jobs. Fingers clamp blade are high carbon steel, Apron blade high tensile steel. Electrics low 24 volts foot switch. Overload protected. Clamping provided by large rams, Oil delivered to rams through steel pipes this is to minimize expansion of hydraulic hose when working at full capacity. Unclamp is controlled, to allow the operator to regulate the open height. Bed head and apron are unique design, to provide maximum strength. To give a straight fold. Automatic and manual control. In auto cycle after clamping start auto a[rpm will come up to angle set, then apron will go down and the head will unclamp to amount set by operator. Electric components is.SIEMENS. Technical parameter

Model	Max. bending thickness(mm)	Max. bending width(mm)	Bending angel(degree)	Max open height(mm)	Main motor(kw)	Size (mm)
W67Y/K-2X2500	2	2500	0-120	110	2.2	3300*850*1550
W67Y/K-2X3200	2	3200	0-120	110	2.2	4100*1550*1550
W67Y/K-3X2500	3	2500	0-120	110	4	3700*1640*1650
W67Y/K-3X3200	3	3200	0-120	110	4	4400*1640*1650
W67Y/K-3X4000	3	4000	0-120	110	7.5	5200*1640*1650
W67Y/K-3X6000	3	6000	0-120	110	7.5	6200*1640*1650
W67Y/K-4X2500	4	2500	0-120	110	4	3750*1640*1650
W67Y/K-4X3200	4	3200	0-120	110	4	4450*1640*1650
W67Y/K-4X4000	4	4000	0-120	110	7.5	5250*1640*1650
W67Y/K-4X6000	4	6000	0-120	110	7.5	6250*1640*1650
W67Y/K-5X2500	5	2500	0-120	110	5.5	3800*1640*1650
W67Y/K-5X3200	5	3200	0-120	110	5.5	4500*1640*1650
W67Y/K-5X4000	5	4000	0-120	110	11	5300*1640*1650
W67Y/K-5X6000	5	6000	0-120	110	11	6300*1640*1650
W67Y/K-6X2500	6	2500	0-120	110	11	3900*1640*1650
W67Y/K-6X3200	6	3200	0-120	110	11	4600*1640*1650
W67Y/K-6X4000	6	4000	0-120	110	15	5400*1640*1650
W67Y/K-6X6000	6	6000	0-120	110	15	6400*1640*1650
