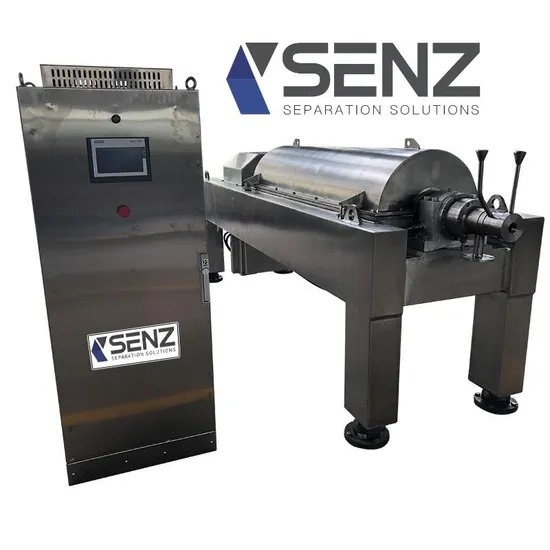

Coal Tar Tar Purification Three-Phase Decanter Centrifuge

Product Description

Product Description
Coal chemical industry
Coal chemical industry refers to the process of converting coal into gas, liquid, and solid fuels and chemicals through chemical processing. It mainly includes coal gasification, liquefaction, dry distillation, tar processing, and calcium carbide acetylene processing. Coal chemical processing. The chemical structure of organic matters in coal takes the condensed nucleus of aromatic (mostly) as a unit core, which is of bridged linkage and has a macromolecular structure with various functional groups. Through thermal and catalytic processing, coal can be converted into various kinds of fuels and chemical products.
Coal tar industry
Coal tar is a dark brown viscous liquid produced during the dry distillation of coal, referred to as tar; the black brown produced during the coal dry distillation is related to a viscous liquid reeking of a pungent odor, with a yield accounting for about 3~4% of the dry coal;
The crude tar is recovered from the coal gas produced in the coking process that is sprinkled with circulating ammonia and condensed in a primary cooler. It contains large water, about 4%, sometimes 8~10%;
In the purification process of tar, our three-phase decanter centrifuge can simultaneously separate ammonia water and solid particles. The water content of purified tar is less than 2%.
Technical characteristics of three-phase centrifuge for coal tar
The heavy liquid phase separated by the centrifuge can adopt two different liquid discharging modes.
1.High-performance sealing structure can effectively reduce the overflow of irritating gas, improve the air quality at the operation site, and reduce environmental pollution;
2.High-performance sealing material can effectively avoid the swelling failure of ordinary rubber parts;
3.The coke button in the coal tar is an important factor affecting the stability and service life of the centrifuge due to abrasion.
SHENZHOU decanter centrifuge is equipped with high-performance wear-resistant protective materials, greatly prolonging the maintenance cycle and ensuring the annual normal running time.

* Separation performance (typical medium and high temperature coal tar) of coal tar three-phase centrifuge:
The centrifuge features high separation efficiency, compact structure, and continuous operation. The diameter of the separated particles can be reduced to 2 μm.
1. The solid content (toluene insoluble matter) in the treated coke button is more than 45%, which can easily optimize the clarification of liquid and the dryness of solids.
2. Tar quality after separation: aqueous ammonia content: <2.5%; tar content: ≥97%; solid content (> 100 μm): <0.3%
3. After separation, the tar in the aqueous ammonia: ≤ 4g/L
Product Parameters

Item		LWS250	LWS350	LWS450	LWS520	LWS580	LWS650
	Unit
Throughput	m3/h	>1	>3~5	>5-10	>10-15	>12-18	>15-20
Roller diameter	mm	250	350	450	520	580	650
Length-diameter ratio mm		4.1	4.1	4.1	4.1	4.1	4
Speed	rpm	5000	4000	3500	3200	3000	2800
Separation factor		3500	3136	3087	2982	2948	2854
Differential speed	rpm	1~50	1~35	1~34	1~34	1~30	1-28
Main motor power	kW	11	22	30	45	55/75	75/90
Ancillary motor power (kW)	kW	4	5.5	7.5	15	18.5	22
Weight	kg	1250	2500	4000	5200	6500	8000
Boundary dimension (L × W × H)	mm	2500× 800×1150	3700× 1050×1400	3800× 1150×1600	4800× 1250×1800	5300× 1750×1382	5600× 1850×1500

indicates that the heavy phase liquid is discharged by the centripetal pump with back pressure; the overall dimensions vary with the liquid discharging way of the centrifuge.

Packaging & Shipping

Company Profile
1. Shenzhou Machinery Equipment Co., Ltd. is a professional centrifuge supplier.
2.We have an experienced team and professional design institute with over 30 years of experience in centrifuge machinery.We sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by telephone video conference.
3.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so on.
4.At the same time,our product with best prices and good quality,welcome to Shenzhou!
FAQ:
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.

---
