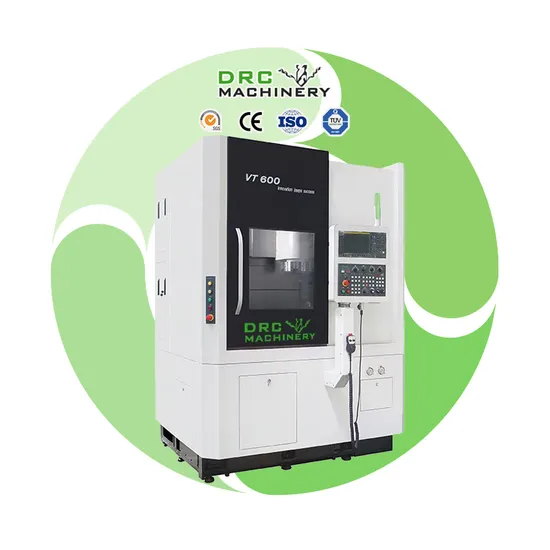

Vt600 Full Function Metal CNC Vertical Turning Lathe

Product Description

High Quality VT600 CNC Vertical Lathe Machine Metal Automatic Vertical Turning Milling Lathe Factory Manufacturer
The machine tool adopts HT300 high-strength cast iron bed, which has undergone two heat treatments and artificial aging (vibration) to eliminate the residual stress of the casting to the greatest extent. All assembly surfaces between motor bases and castings are precisely adjusted by manual scraping to ensure the overall accuracy of the machine tool. In terms of design, the spindle column adopts a symmetrical box structure, which can provide reliable support for the turret during heavy cutting and reduce high-frequency vibration during milling. It is the structural foundation for high rigidity and high precision of the machine tool. In order to adapt to large diameter and heavy load cutting, the machine tool is equipped with a 15\18.5Kw spindle motor as standard.
The maximum turning speed can reach 2500rpm and the maximum torque can reach 440Nm. Taking into account the efficiency and responsiveness of linked milling, and the fact that most turn-milling applications use high-speed, large-depth-of-cut, and high-feed processes, the C-axis supports a maximum feed parameter of 36000°/min (100rpm/min) 440Nm. , to respond to the needs of high-speed milling to the greatest extent. In terms of milling, it is equipped with a 100Nm 5.5kw milling motor with a maximum speed of 3000rpm. This adapts to the milling needs of different materials. The 12-station turret equipped with BMT65 as standard has been verified by the design structure to ensure that there are no dead ends in the positive and negative tool installation angles. And the servo motor tool changing solution maximizes the execution efficiency of the turret and the repeated positioning accuracy of the tool, so that the tool changing time basically does not need to be considered when designing the process plan. Considering green production and employee health, the machine tool adopts a fully enclosed sheet metal design and can be equipped with an optional oil mist collector to reduce the generation and spread of smoke, harmful particles, and aerosols.
Product Parameters

Swing over Bed	Φ700	mm
Max. Turning Diameter	Φ600	mm
Max.table load	600
Recommended max. turning diameter	Φ390	mm
Clamping Chuck Diameter - main spindle	Φ310	mm
X travel	380	mm
Z travel	560	mm
Rapid Traverse X/Z	20/20	mm
Spindle nose	A2-8
Front Bearing Diameter	130	mm
Main Drive Power	15 / 18.5	kW
Main Drive Torque	440	Nm
Max. spindle Speed	2,500	rpm
Turret type	BMT65
Number BMT65 Tool Stations	12
Shank diameter	25,Ø40	mm
Number of Driven Tools	12
Rated Power	5.5	KW
Max. Torque	100	Nm
Max Speed	3000	rpm
Coupling	BMT65
C-Axis Speed Range	100	rpm
C-Axis Torque	440	Nm
Accuracy of positioning in X/Z Axes	≤ 6 / 8	µm
Accuracy of repeatability in X/Z Axes	≤ 4 / 5	µm
Accuracy of positioning in C Axes	≤ 20	arcsec
Hydraulic Tank Capacity	35	l
Hydraulic Pressure, max.	55	bar
Coolant Equipment
Coolant tank capacity	180	l
Chip conveyor capacity	170	l
Pump Power	0,85	kW
Pump nominal flow rate at 5 bar	24	l/min.
Installed Power, max	50	kVA
Voltage	400	V
Frequency	50/60	Hz
Fusing (slow-blowing) according to VDE 0100	50	A
Allowed Voltage Fluctuation at 400 V	+ 10	%
Air Pressure	6	bar
Air consumption	15	m3/h
Room Temperature	+ 15 to + 35°C
Max. relative air humidity	75 %
Max. Installation Height above msl	1000 m
Net weight of the machine with chip conveyor	approx. 6500	kg
Machine with Chip Conveyor L x B x H	approx. 1810 x 3580 x 3135	mm

---
