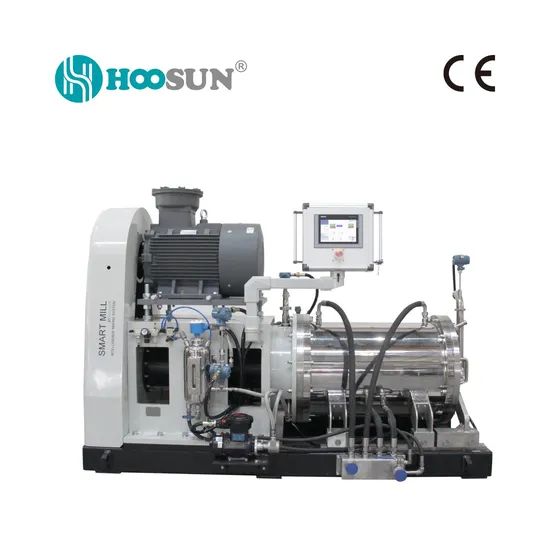

Hoosun High-Flow Pin Type Bead Mill - High Precision Grinding Mill for Dye, Pigment, Ink, Carbon Black - Model SMP 90

Product Description

Product Description: The SMP90 model is a highly efficient large-volume bead mill specifically designed for fine grinding and dispersing paints, pigments, inks, and carbon black. With high energy density in the grinding area and narrow particle size distribution, this mill ensures uniformity and high degree of product fineness up to 100 nm. It is also suitable for grinding particles as small as 0.1 mm.
Key Features: Operating Principle: Cylinder Grinding Volume: 90 liters Power: 90/110 kW Capacity: >3000 liters per batch Cutter Material: Ceramic with compressive strength >300 MPa Grinding Style: Fine grinding and impact Bead Size: 0.1-0.6 mm Benefits of the SMP90 Model: High Performance: Rapid and efficient grinding of large volumes of materials. Precision and Quality: Ensures excellent uniformity and quality of the final product. Reliability and Durability: Robust design and high-quality materials ensure long service life. Versatility: Ideal for various industrial processes, including the production of paints, pigments, and inks. Technical Specifications:

Model Grinding Chamber Volume (L) Batch Size (L) Drive Power (kW)

SMP0.5	0.5	1-7	3.7
SMP10	10	500	17.5/22
SMP25	25	2000	37/45
SMP60	60	>2000	75/90
SMP90	90	>3000	90/110
SMP150	150	>4000	160/250
SMP400	400	>10000	315/355
