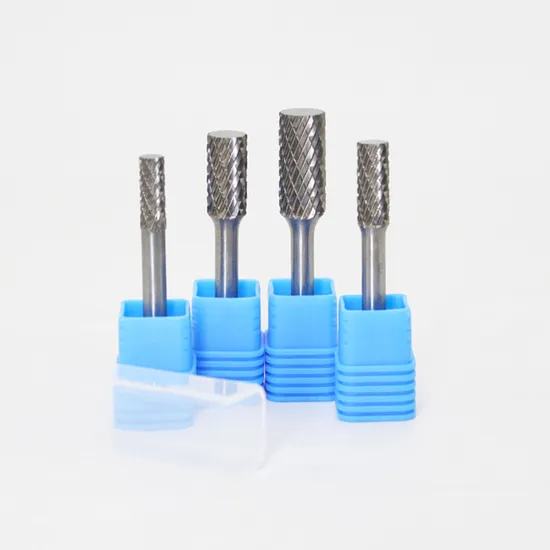

3X6mm Double Cut Abrasive Burr Grinder Bits Tungsten Carbide Cylinder Flat End Carbide Burs

Product Description

Product Description ATTENTION:
The following size chart is READY TO SHIP burrs,
If you need more size and quantity, please send inquiry to get WHOLESALE PRICE! THANK YOU
All Kinds of Shape Available

Name	Type	Cut	Material	Product Process	Head Hardness	LOGO
Cylindrical Shape Burr	A	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Cylindrical End Cut Burr	B	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Cylindrical Radius End	C	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Ball Shape Burr	D	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Oval Shape Burr	E	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Tree Shape Radius End	F	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Tree Pointed Ends Burr	G	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Flame Shape Burr Burr	H	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Cone Shape With 60°	J	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Cone Shape With 90°	K	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Taper Radius End Burr	L	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Cone Burr	M	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Inverted Cone Burr	N	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Disc Type Burr	W	Standard/Single/Double/aluma	Tungsten carbide/YG7/TCT	CNC	90-91HRA	available
Grades of Carbide Tungsten Burr
China Grade	ISO grade		Density(g/cm3)	Hardness(HRA)	TRS(Mpa)
YG6	K20		14.95	91	1800
YG6X	K10		14.95	92	1800
YKM6A	K10		14.95	92.5	1800
YG8	K30		14.7-14.8	90	1950
YT5	P30		13	90.8	1900
YT14	P10-20		11.5	91.5	1500
YT15	P10-20		11.3	91.8	1450
YW1	M10-20		13.1	91.5	1600
YW2	M10-20		13.1	91	1600
YS25	P25		12.8	91.5	1900
YC30S	P30		12.8	91	2000
ZP35	P35		12.8	91	2000
YC40	P35		13.2	90	1850
Speed /RPM
1.6mm or 1/16"			25,000 - 35,000
2.35mm or 3/32"			25,000 - 35,000
3mm or 1/8"			25,000 - 35,000
6mm or 1/4"			25,000 - 35,000
12mm or 1/2"			25,000 - 35,000
16mm or 5/8"			25,000 - 35,000
Single-cut burs :are for general purpose work and provide good material removal. Double-cut burs :produce smaller chips for greater operator control on applications such as stainless steels and ferrous materials. Aluma-cut burs :have a wide flute design for easy stock removal without loading on applications such as nonferrous and soft materials. Standard-cut burs :are widely uesed and leave a fine finish

Our Advantages
Company Profile
Packaging & Shipping
FAQ 1.Could your company send me the catalog with price list? KTS : Yes, catalog is OK, but kindly tell us the item models you want. Then our salesmen will send quotation list as soon as possible. 2.May I order small quantity of carbide products? KTS : Yes, but different models have different MOQ. So you'd better contact us to confirm. 3.Can your company provide samples? KTS: Yes, please feel free to tell us the item item models you prefer. Your own designs are also welcome to custom sample for you. 4.When can your company delivery me the carbide products after payment? KTS : Usually around 7-15 days. 5.What is your price term,payment term and delivery terms? KTS : Price Terms: By FOB Guangzhou price. Balance paid before shipment. Payment Terms: T/T in advance. Delivery Terms: BY express,by air, by shipment or as per requirement. 6.What is your company's guarantee? KTS : The products will pass strict inspection before shipment. If any problems be found, detail photos need to be provided 20 days after receiving the goods. After our confirmation, compensation will be offered accordingly.

---
