High-Quality Automatic Diamond Fence Machine

Product Description

Product Description
Factory best price automatic wire mesh weaving fencing making chain link fence machine

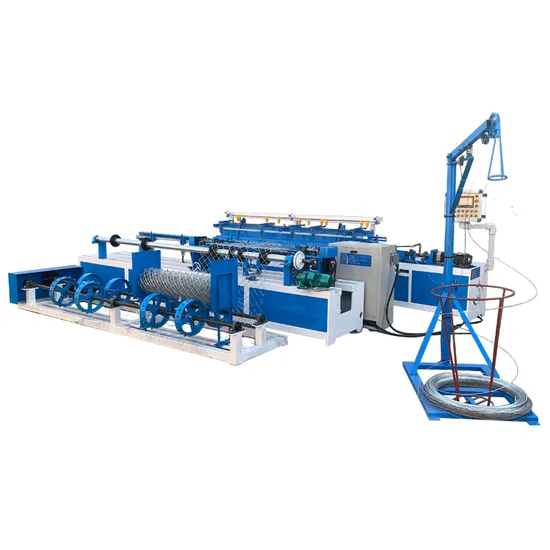

automatic single wire chain link fence machine
This chain link fence machine can use diameter 1.3-4.0mm galvanized wires and PVC coated wires and other materials,the raw material tensile strength can be 350-550MPA to produce chain link fences,adopts servo motor to weave,PLC and touch screen to control,automatic twisting edge or knuckling edge,automatic rolling m esh.These fences are mainly used as airport fences,playground fences,high way fences,railway fences and so on.
Product Parameters

Type	Automatic Single Wire Chain Link Fence Machine
Material	galvanized wires,PVC coated wires,Zinc aluminum alloy wire
Wire Diameter Range	1.5-4.0mm
Mesh Size	25*25mm-100*100mm
Max Weaving Mesh Width	3.0m
Max Weaving Mesh Length	30m, adjustable according to the practical needs
Working Speed	80-120m/h
Weaving Way	Servo motor
Mesh Edge	Twisted or Knuckled
Dimension	4.2*2.2*1.2m
Weight	2.2T

Detailed Photos
After Sales Service
FAQ
Are the machines second-hand or new? All of our machines are brand-new ones. All machines produce based on order
How to package the machine? Machines will be packed by plastic film and fixed to the container by wire rope.
What's your payment terms? T/T 30% as deposit, and 70% balance paid after sending you the debugging video but before delivery.
What's the delivery time? Within 30 working days after receiving advanced payment
1. Your Company location?
The North No. I-10 Wire Mesh Industrial Zone, Anping County,Hebei Province

---
