500 Pieces/Min 10 Knife Cutting 2400kgs Weight High Speed Paper Drinking Straw Making Machine

Product Description

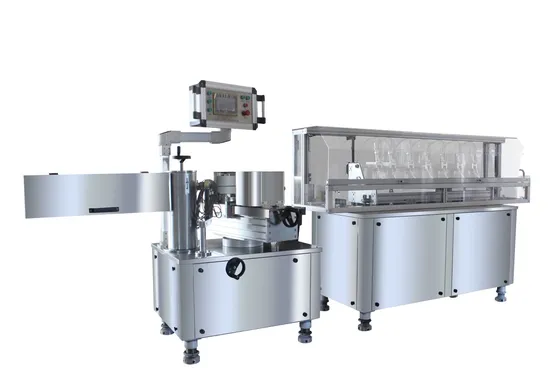

CFXG-100 Paper Straw Machine
100m/min.; 10cutters
Technical Parameters

Technical Parameter
Paper Layer	4 layers
Paper Straw OD	6-13mm
Paper Straw ID	5.2-12.3mm
Highest Speed	100m/min.
Stable Speed	85-90m/min. (related to straw size & material quality)
Winding Nose	Two noses single belt
Machine & parts	304 Stainless steel
Length fixing	Encoder
Speed Control	By Inverter
Cutting System	Multi-blades; 10 pcs online
Synchronism tracking cutting system	Servo motor synchronism tracking
Straw Collecting	Automatically
Equipped with	Safety Covers
Operator	1 person
Working Air Pressure	0.6Mpa
Measurement & Weight
Measurement	4500*1500*1800mm
Working Space	9000*5000mm
Weight	Around 2500kgs

Configuration
Paper Reel Stand	4 Layers (auto paper connection)
Gluing Unit	4 Layers
Winding Belt	5 Pieces
Mandrel Shaft	3 Sets
Cutting Blade	20 Pieces
Useful Tool	1 Set

Machine Frame Adopted with Metal + 304 Stainless Steel. Strong Enough for High Speed Working. Winding Part: Both 3 layers and 4 layers are available 4 Layers Auto Paper Splicer, can make both 3 layers and 4 layers
Automatic Paper Splicer - Paper Connecting Without Stop
10 Blades Cutting System - Less Waste; Longer Cutting Range
Glue Unit
Lubricating Oil Tank for Inner Layer - without glue
Middle Layer - Double size glue
Top Layer - Single side glue
Paper Straw Collector
Finished Paper Straws
Packing & Delivery
Company Profile
Wenzhou Chuangfeng Machinery Co., Ltd. as a professional machine manufacturer has 15+ years' experience on paper tube & core machines manufacturing and 7+ years on paper straw machines manufacturing.
Main products are below:
-- Paper straws making machine
-- Paper tube & core making machine
-- Paper tube & core cutting machine
-- Jumbo paper slitting rewinding machine
-- Related machines
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan, Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain, UK, Ukraine, Russia, Uzbekistan, USA, Mexico, Colombia, Ecuador etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success!
Our Overseas Business
Our Offices & Team
Our Workshops

---
