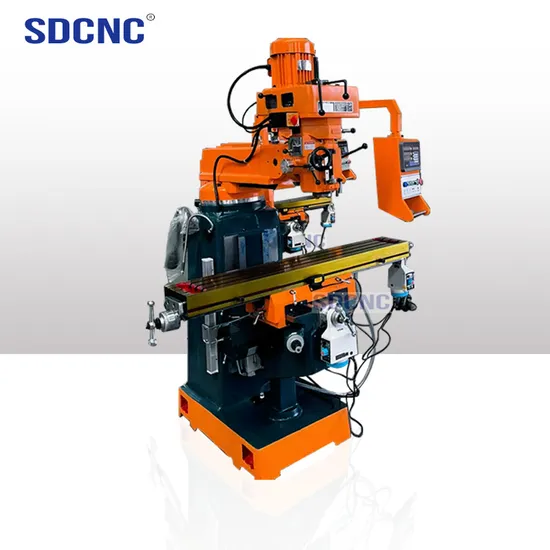

X6325 Turret Milling Machine Drilling and Milling Machine

Product Description

The main performance characteristics:
1. high strength cast iron, internal honeycomb rib structure, high rigidity, long service life
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing,
after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries. Product Parameters

Specifications	Units	X6325
Table size	mm	1270x254
Table travel	mm	780/400/400
T slot(number-width-pitch)	mm	3-16-50
Spindle taper		R8
Spindle speed range	rpm	standard:16 steps 50HZ:65-4500 60HZ:80-5440
		Optional:variable 65-4000
Spindle travel	mm	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)
Distance between spindle nose and table surface	mm	90-510
Distance between spindle axis and table surface	mm	-
Main motor power	kw	2.2
Head rotation (left - right )	°	±90°
Head rotation (front - rear)	°	±45°
Weight	kg	1400
Overall dimension	mm	1550x1650x2250

---
