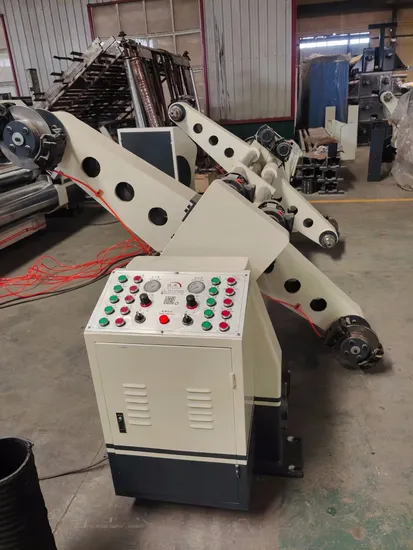

Electrical Shaftless Mill Roll Stand, Used Single Facer Corrugation Line

Product Description

used 2/3/5/7-ply Corrugated Cardboard Production Line
We mainly making brand-new machines, also help customers to find used machines if wanted!
1) 2/3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical or Hydrualic Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer Corrugator, Overhead Conveyor Bridge, Duplex or Triplex Preheater, Single or Duplex Gluer, Double Facer, NC Thin Blade Slitter Scorer, NC Rotary Cut-off, Up or Down Conveyor & Stacker, etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 2/3/5/7-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated cardboard and carton box factories.

Max Effective Width	1100~2500mm
Max Paper Roll Diameter	1500mm
Max Paper Roll Weight	3000kg
Corrugating Roller	Φ280~405mm, 48CrMo alloy steel, hardness HRC58°-60°
Min Slitting Width	150mm
Cutting Length	500~9999mm
Design Speed	100~200m/min
Heating Method	Steam Heating
Economic Working Speed	80~160m/min

---
