High Precision CNC Horizontal Boring Machining Center CNC Machining Center Ysbd-110 6 Ton

Product Description

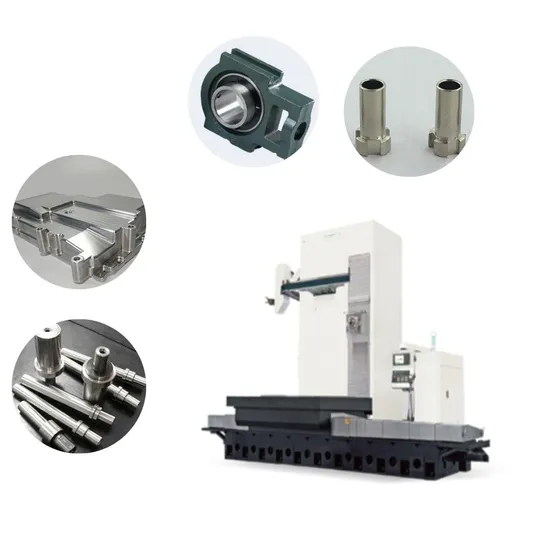

Horizontal Boring Machining Center YSBD-110/6T
The machine tool is equipped with name brand components in the industry, equipped with a large torque, high speed motor and a super rigid bed design.Taking into account high torque, high speed and high precision, it is suitable for processing all kinds of products and molds. 40 and 60 tools guideway type tool magazines,which are driven by a servo tool magazine,improve the overall tool change efficiency.
The Y-axis adopts a box-in-box high-rigidity right and left pairedlining structure;The Y axis installs 4 linear guideways, 2 front and 2 back, with high rigidity, high precision and long service life.
The X and Z axis transmission method installs direct-acting four-wheel drive. It has stable accuracy. Also, it could eliminate backlash, improve torsional rigidity and allow angle;The Y-axis installs direct-drive transmission and cooperates with a German reducer to improve torsional rigidity.
The main shaft installs European structure design,high rigidity, high speed and low vibration;Low speed and high torque for the spindle.
The linear guideway installation surface and the ballscrew center are on the same plane, which makes the ballscrew drive more stable and ensures the stability of the overall accuracy of the machine tool.

Model No.	YSBD-110/6T
Item No.
Travel
X-Axis(Standard)	2000mm
X-Axis(Optional)	2500 mm
Y-Axis(Standard)	1800 mm
Y-Axis(Optional)	2000 mm
Z-Axis(Standard)	1500 mm
Z-Axis(Optional)	/
W-Axis(Standard)	550 mm
Worktable
Worktable Size-Standard(L*W)	1250x1500/5Tmm
Worktable Size-Option(L*W)	/
Table Indexing	1°/0.001°
T-Slot	22H7x150x7 mm
SPINDLE
Spindle Nose to worktable	65~1665 mm
Spindle Nose to table center	-125~1925 mm
Spindle Diameter	Ø110 mm
Spindle Type	BT50
Spindle R.P.M.	3500 rpm
Spindle Transmission	Belt
Feedrate
X/Y/Z/W Cutting Feedrate	10/10/10/6 m/min
X/Y/Z/W Rapid Traverse	10/10/10/8 m/min
Tool changer
Tool Storage Capacity	40
Tool Selection method	Servo Drive
Max. Tool Diameter	25 kg
Max. Tool Weight	500 mm
Max. Tool Length	Ø125/Ø250 mm
Tool Change Time	14 sec
Motor
Spindle Motor	18.5/22 kw
Max.Torque	973.5/1155 Nm
Accuracy
Indexing Accuracy	6/10 Aarc/sec
Indexing Repeatability	±2/±4
Position Accuracy	0.01 mm
Repeatability	0.005 mm
Power Required
Power Requirement	50 kva
Air Pressure Requirement	6 kg/cm2
Others
Extemnal Dimensions(LWH)	6600x5150x5250 mm
Gross Weight	31 t

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
