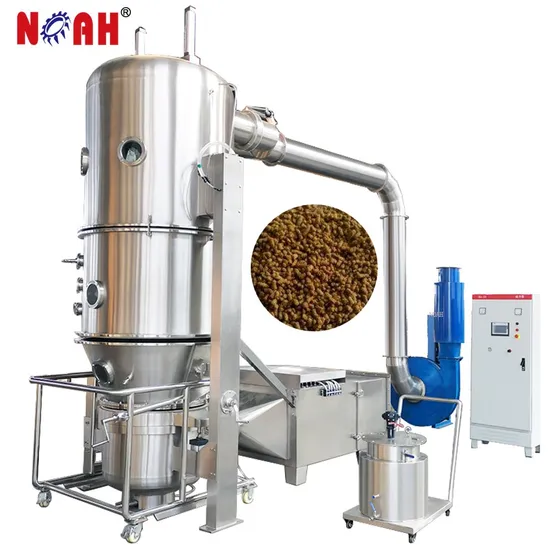

FL-200 Lab Pharmaceutical Use Stainless Steel Fluidized Bed Dryer Granulator Machine

Product Description

FL-200 Lab Pharmaceutical Use Stainless Steel Fluidized Bed Dryer Granulator Machine The FL-200 Lab Pharmaceutical Agricultural Use Benchtop Fluidized Bed Dry Granulator Machine is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
Characteristic
1, Mixing-granulating-drying in one-step.
2, Adopting double chamber filtering bags system, removing dust completely.
3, Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is low.
4, Can choose 2 bar explosion-proof design
5, Designed, manufactured and laid out by GMP Technical Parameters:

Item			specification
Name		Unit	3	5	15	30	60	120	200	300	500	800-1000
Container Volume		L	12	22	45	100	220	420	670	1000	1500	By client
Diameter		mm	350	500	550	700	1000	1200	1400	1600	1800
Capacity		kg/batch	3	5	15	30	60	120	200	300	500
Steam	Pressure	Mpa	0.4-0.6
	Consumption	kg/h	15	18	35	60	120	140	180	310	400
Power of fan		kw	2.2	3	5.5	7.5	11	18.5	22	30	45
Power of supply liquid motor		kw	0.37
Compressed air	Pressure	Mpa	0.4-0.6
	Consumption	m 3 /min	0.3	0.3	0.6	0.9	0.9	0.9	1.1	1.1	1.5
Working temperature		ºC	Normal temperature -120ºC could adjust
Noise		DB	Installed separated with fan ≤75
Overall dimension of machine		mm	Installation drawing or customer's room

---
