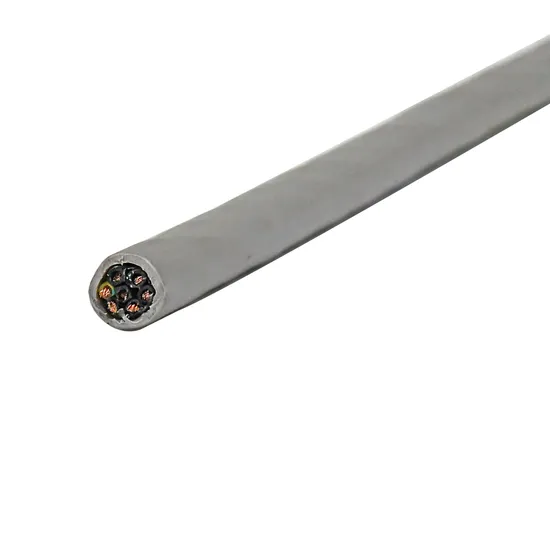

4 5 7 8 10 12 19 21 24 Cores Shielded Fire Resistant Flexible Multi Core Copper Flexible PVC Control Cable

Product Description

Product Description
4 5 7 8 10 12 19 21 24 Cores Shielded Fire Resistant Flexible Multi Core Copper Wire Flexible PVC Control Cable
Rated Voltage : 450/750V,0.6/1KV
Model Type : KVV/KVVP/KVVP22/KVVP32/KVVRP
Conductor Material : Copper
nsulation Material : PVC/XLPE
Working Temperature : 0 °C to 70 °C
Standard : IEC 60227,GB9330,BS,VDE or other standards
Application : For interior electrical installation in a dry or wet environment, particularly for fixed and installation in the
industrial use of the environment without the stress of sustained-release or forcibly guided free on the continuous
reciprocating motion
Product Parameters:

Type	Name	Application Site
KVV	Copper conductor PVC insulated and sheathed control cable	For laying indoors, in trenches, and in ducts for the fixed installation
KVVP	Copper conductor PVC insulated & sheathed copper wire braiding screened control cable	For laying indoors, in trenches, and in ducts for the fixed installation
KVVP2	Copper conductor PVC insulated and sheathed control cable with steel tape shied	For laying indoors, in trenches, and in ducts for the fixed installation
KVV22	Copper conductor PVC insulated and sheathed control cable with steel tape armoured	For laying indoors, in trenches, in ducts and in ground, able to with stand heavier mechanical force and for fixed installation
KVVR	Copper conductor PVC insulated flexible control cable	For laying indoors, movable and flexible
ZR-KVVP	Copper conductor PVC insulated & sheathed copper wire braiding screened flexible control cable	Fixed laying indoors with capability of moving and screening
ZR-KVV	Copper conductor PVC insulated and sheathed flame retardant control cable	For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance
ZR-KVVP2	Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield	For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance
ZR-KVV22	Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armoured	For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardance and able to bear beavier extermal mechanical force and for fixed installation
ZR-KVVR	Copper conductor PVC insulated and sheathed flame retardant flexible control cable	For laying indoors, and the cable should be flame-retardant flexible and movable

Company Profile
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
