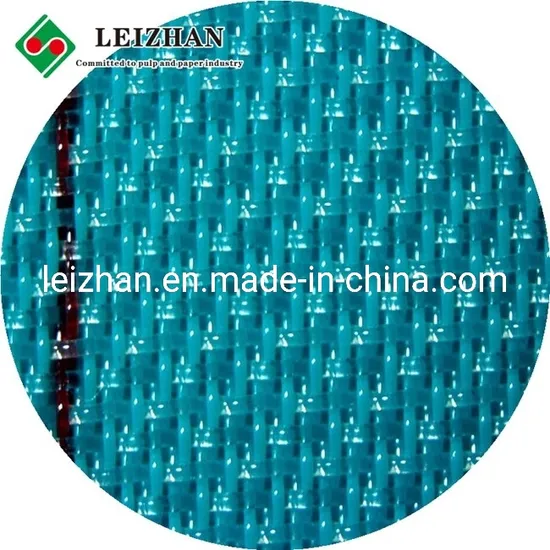

Polyester Triple Layer Forming Wire for Paper Machine

Product Description

Product Description
Paper making polyester forming wire can be divided into 4-shed, 5-shed, 8-shed, 16-shed, 24-shed according to the weaving type, etc.
Paper making polyester forming wire can be divided into single layer fabric, double layer fabric, two-and a half layer fabric and three-layer fabric according to the category. 1 /1.5 layer forming fabric

Single & 1.5 layer paper making forming wire
Weaving series & types	Fabric Model	Wire Diameter mm		Density(root/cm)		Tensile strength		Tickness mm	Air Permeability M3/m2h	Force elongation (in 50N/cm Tension,Tension rate not more than)
		Warp	Weft	Warp	Weft	Surface	Joint
4-shed single layer forming fabric	SFW27254	0.20	0.25	29	22	≥600	≥400	0.49	7500±500	0.60%
	SFW27274	0.20	0.27	30	22.5	≥600	≥400	0.51	7600±500	0.60%
	SFW31254	0.20	0.22	35	28	≥600	≥380	0.43	6500±500	0.68%
5-shed single layer forming fabric	SFW27215	0.20	0.25	30	23	≥600	≥350	0.5	7600±500	0.60%
	SFW27285	0.22	0.28	30	23	≥600	≥500	0.48	7800±500	0.60%
	SFW31205	0.20	0.21	35	32	≥600	≥400	0.48	6700±500	0.60%
Application : cultural paper (single glue, double glue and color glue), printing paper, glazed paper, packing paper, common newsprint and etc.
Suitable for common fourdrinier paper machine
8-shed 1.5 layer forming fabric	SFW25358	0.22	0.35	28	19.5	≥700	≥500	0.86	9000±500	0.65%
	SFW25458	0.22	0.38	29.5	19	≥700	≥500	0.88	8500±500	0.65%
	SFW27358	0.22	0.35	29	20	≥700	≥500	0.86	8500±500	0.65%
	SFW27408	0.22	0.40	31.5	19	≥700	≥500	0.88	8000±500	0.65%
Application:packing paper,kraft paper, cardboard , corrugated paper,printing paper and etc
Suitable for common fourdrinier paper machine

2.5 layer forming fabric

2.5 layer paper making forming wire
Weaving series & types	Fabric Model	Wire Diameter mm		Density(root/cm)		Tensile strength		Air Permeability		FSI	DI
		Warp	Weft	Warp	Weft	Surface	Joint	M3/m2h	CFM
16-shed double layer forming fabric	2H5608	0.17	0.18 0.13/0.25 0.25	62.5-63.5	51.0-52.0	≥850	≥650	6000	380	121	26.9
	2H5616	0.17	0.20 0.13/0.30 0.30	62.5-63.5	60.5-61.5	≥1500	≥1300	4500	285	139	23.9
			0.20 0.13/0.30 0.30		53.5-54.5	≥1500	≥1300	5500	350	126	26.0
			0.20 0.13/0.35 0.35		59.5-60.5	≥1500	≥1300	3950	250	137	20.6
			0.20 0.13/0.35 0.35		56.6-57.5	≥1500	≥1300	4500	285	131	22.3
			0.20 0.13/0.35 0.35		53.5-54.5	≥1500	≥1300	5050	320	126	23.7
			0.20 0.13/0.35 0.35		50.5-51.5	≥1500	≥1300	5500	350	120	24.6
			0.20 0.13/0.35 0.35		47.5-48.5	≥1200	≥1000	6000	380	115	25.1
			0.20 0.13/0.40 0.40		48.5-49.5	≥1250	≥1050	5050	320	117	21.5
	2H3216	0.22	0.22 0.13/0.35 0.35	47.0-48.0	47.0-48.0	≥1500	≥1300	6000	380	107	24.8
			0.25 0.17/0.40 0.40		46.0-47.0	≥1500	≥1300	5500	350	105	22.4
			0.25 0.17/0.40 0.40		40.0-41.0	≥1500	≥1300	7000	445	94	24.8
	2H3616	0.26	0.30 0.20/0.50 0.50	40.5-41.5	38.5-39.5	≥1500	≥1300	5500	350	89	18.8
					36.5-37.5	≥1500	≥1300	6350	400	85	20.4
					34.5-35.5	≥1500	≥1300	7000	475	82	21.4
Application:printing paper,newsprint ,cigarette paper series (wrap paper and filter tips paper),kraft paper, cardboard , corrugated paper ,toilet paper, tissue paper and surface pulp, lining pulp,core pulp and bottom pulp of the board paper etc.
Suitable for medium and high speed paper making machine.

SSB layer forming fabric

SSB layer paper making forming wire
Fabric Model	Wire Diameter mm		Density(root/cm)		Tensile strength		Air Permeability		FSI	DI
	Warp	Weft	Warp	Weft	Surface	Joint	M3/m2h	CFM
3LSSB4224	0.22/0.30	0.22 0.22/0.45 0.45	41.5-42.5	43.5-44.5	≥1600	≥1400	5500	350	110	19.6
				41.5-42.5	≥1600	≥1400	6350	400	107	21.3
				39.5-40.5	≥1600	≥1400	7000	445	103	22.6
				37.5-38.5	≥1600	≥1400	8000	505	100	24.4
3LSSB4220	0.22/0.30	0.22 0.22/0.45 0.45	41.5-42.5	49.5-50.5	≥1600	≥1400	5500	350	119	22.2
				47.5-48.5	≥1600	≥1400	7000	445	115	27.1
	0.22/0.28	0.22 0.22/0.50 0.50		45.5-46.5	≥1600	≥1400	6350	400	113	23.4
				42.5-43.5	≥1600	≥1400	7000	445	108	24.3
				39.5-40.5	≥1600	≥1400	8000	505	103	25.7
Application :printing paper, tissue paper and cigarette paper etc.
Suitable for high speed paper making machine.

our worshop
Installation Instructions
1. Before installing the forming wire, kindly check the equipment if it is in good condition, the surface of wires should be forbidden from unevenness, slanting, burr, sand, etc.
2. The running direction must be in accordance with the direction of the arrow on the wire, the wire should be placed in the correct position, and the rollers should be paralleled with each other to prevent the wires from being deflected.
3. There should be a swinging high-pressure water device that used to wash wire. Water pressure is not lower than 6-10 kg/cm² for the medium and low-speed paper machine; speed more than 350m/min, water pressure is not lower than 10-15 kg/cm²; When using multi-layer forming wire, water pressure is not lower than 15-30 kg/cm², meanwhile water should be clean and without sand.
4. When installing the forming wire, firstly let the wire be slightly tensioned, add water to lubricate the operation, adjust the tension to normal after sizing, keep the tension of the low-speed paper machine at 3-4 kg/cm², and high speed one at 4-6 kg/cm². Company Profile
We are a China industrial felt and fabric manufacturer located at Jiangsu province,Xuzhou city. With advantage technology and excellent produce equipment,we provide one-stop service from consultation,process design and optimization , manufacture ,installation , commissioning and personnel training and so on.At the meantime,we can custom design according to customers' requirements. Now, in addition to providing high-quality products and basic services, we pay more attention to providing customers with technical support and a complete set of solutions. Through our professional analysis, we can reduce customers' costs, enhance their competitiveness, and provide customers with one-stop industrial fabric solutions.
FAQ
1. How toproceed an inquiry for forming wire ?
1)Size
2)Speed of paper making machine,
3)Paper type, weight of paper,
4)How many layer of forming fabric,
5)pulp materila.
You can also indicate if you have any special requirement. We'll recommend most suitable type for you and provide a formal quotation list after received your inquiry .
2. Can I have a sample order for press felt?
A: Yes, we can provide free sample together with our catalogue for customer to test and check quality. Mixed samples are acceptable.
But the freight charge will on your side. We'll refund the freight charge when you place an order with us .

---
