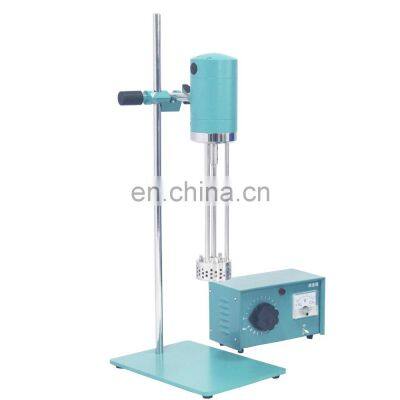

High Shear Emulsifier For Cosmetic Making AE300LAE300L series has 2 different model, P and H, please check out the specifications to get detail.
- A high speed micro universal motor, composed of die-casting high density aluminium.
- Speed controller and other components.
- Stirring, mixing, grinding, shearing and emulsifying viscous liquid, crushing particulate material in a liquid medium.
- Suitable for laboratory or pilot plant.
How to choose between these 2 models:1. The H series has timer function and LED speed displayer.
2. The P series is basic model.
Specifications
Specifications
Model
| AE300L-P
|
Working Voltage
| AC 220V 50/60Hz
|
Input Power
| 510W
|
Output Power
| 300W
|
Rated Torsion
| 22.1 N.cm
|
Speed Control
| Controlled by seperated box
|
Speed Range
| 200-12000 rpm
|
Max. Torque of Shearing Head
| 22.0 N*cm
|
Max. Stator Linear Velocity
| 19 m/s
|
Working Capacity(H2O)
| 500-40000ml
|
Material of Shearing Head
| Stainless Steel 304L
|
Diameter of Shearing Head
| 70 mm
|
Standard Stator Size
| 5/20/50 mm2
|
Min. Working Liquid Height Level
| 50 mm
|
Max. Working Liquid Height Level
| 236 mm
|
Max. Handling Viscosity
| 8000 mPa.s
|
Demension of Emulsifier
| 360×260×760 mm
|
Demension of Control Box
| 240×120×150 mm
|
Permissible Ambient Temperature
| ≤40 ℃
|
Permissible Relative Humidity
| ≤90%
|
Net Weight
| 13.8 kg
|
Gross Weight
| 15.0 kg
|
