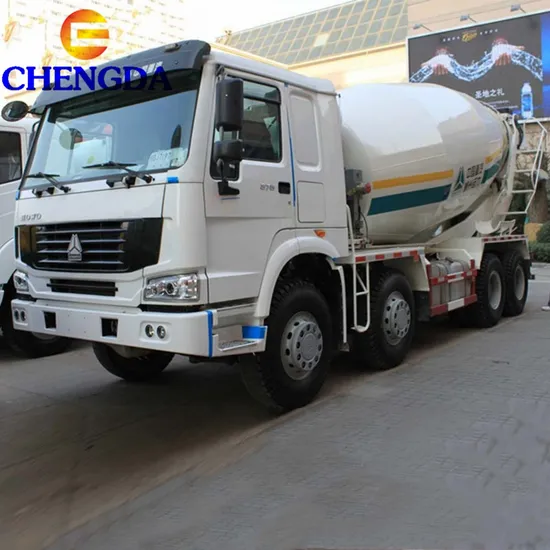

HOWO 4X2 6X4 8X4 Self-Loading Concrete Mixer Truck

Product Description

-Product Description-

Product Specifications
Engine model			WD615.93C
Engine Power			290HP
Displacement			9726ml
Fuel Type			Diesel
Emission standard			Euro III
Overall dimension (L*W*H)			8375*2496*3950mm
Wheelbase			3200+1350mm
Minimum turning circle			20
Curb weight(kg)			12300
Max speed(km/h)			90
Fuel tank capacity(L)			300
Fuel type			Diesel
Transmission model			HW15710
Steering system			ZF8098
Front axle			HF9
Rear axle			HC16
Tyre			12.00-20(10+1spare)
Brake system	Service		Dual circuit compressed air brake
	Parking		Spring energy, compressed air operating on rear wheels
	Auxiliary		Engine exhaust brake
Electrical system	Battery		2X12V/165Ah
	Alternator		28V-1500kw
	Starter		7.5Kw/24V
Cab	HW76 cab, (one sleeper, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
Geometric Volume		13.5m3
Agitating Capacity		8m3
Drum rotating		14°
Agitator rotaion speed		0-14r/min
Feeding speed		>3.5m3/min
Water Tank Volume		400L
Discharge remain ratio		<0.2%

-Packaging & Shipping-

-Company Information-
SINOTRUCK HOWO SALES CO.,LTD SINOTRUCK HOWO SALES CO.,LTD.is located in Jinan city, Shandong Province, P. R. China. It is the cradle and
leading production base of the heavy-duty truck industry in China. It is famous for developing and manufacturing
SINOTRUK HOWO tractor trucks, dump trucks, fuel tanker trucks and concrete mixer truck, water spraying trucks etc.
Contacts: Abraham Sun
TEL: +86-531-69985132
FAX: +86-531-69985133
Mob: +86-18753151691(Whatsup / Abraham)

Company Name: Shandong Yuncheng Chengda Trailer Manufacturing Co., Ltd.
Address: Jingdu Guoji Building,Shunhedong Street,Shizhong Zone, Jinan City, Shandong
Province, P.R.China

---
