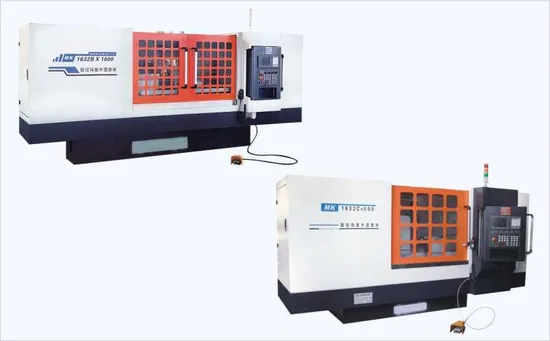

Mk1632b Mk1632c CNC Transverse Cylindrical Grinding Machine

Product Description

Product Description
Main functions and features
• This series machine is suitable for large quantities cylindrical shaft parts with shoulder and face machining grinding, shaping a plurality of steps to achieve the end face of the wheel when installing wide, high degree of automation, enabling one person to operate more than one.
• Using SYNTEC CNC system (other systems can also be configured according to the custom).
• High precision automatic measuring instrument is configured to achieve closed-loop automatic grinding work cycle to ensure dimensional accuracy.
• Wheel frame using high-speed hybrid spindle assembly, with high rotation precision, rigidity,Wheel width can be installed.
• Using bevel grinding head oblique into the type of grinding wheel frame structure.
• Configure a separate electrical box, tank and filtration tank.
• Wheel motor adopts AC frequency adjustment device, that can basically achieve constant linear speed grinding.
• MK1632C is a high-end CNC end face cylindrical grinder developed by our company. The grinder adopts the marble bed made by foreign advanced technology. It adopts the selfdeveloped widening workbench and is equipped with the Taiwan silver overload roller linear guide in X and Z directions. The rigidity, stability and accuracy of the grinder are obviously superior to that of the same type grinder.
Product Parameters

Description Dia to be ground	unit mm	MK1632B×500 K1632C×500 φ8- φ320	MK1632B×1000 K1632C×1000 φ8~φ320	MK1632B×1500 φ8~φ320	MK1632B×2000 φ8~φ320
Max.length to be guound	mm	500	1000	1500	2000
Center height	mm	180	180	180	180
Max.workpiece weight	kg	150	150	150	150
The travel of tailstock center	mm	40	40	40	40
Wheel peripheral velocity	m/sec	45	45	45	45
Distance between centers	mm	500	1000	1500	2000
Swinel range of worktable		-3~+9°	-3-+7°	-3-+7°	-3~+7°
External wheel size	mm	φ600x75xφ305	φ600x75xφ305	φ600x75xφ305	φ600x75xφ305
Workhead and tailstock center	morse	N0.5/N0.4	N0.5/N0.4	N.5/N0.4	N0.5/N0.4
(xx)Overall dimensions(L×WxH)	mm	3200×2006×1955	4800x2006x1955	5700×2100×1647	6700×2150×1892
Machine weight	kg	4200 6500	5500 7500	7000	6500
Total motor power	kw	22	22	22	22

Detailed Photos
Our Advantages
Who We Are?
Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.
HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.
What Do We Can Do?
The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.
Our Aim:
Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry.

---
