Cylinder Inner Hole Honing Machine

Product Description

No.	Item	Unit	Parameters	Remarks
1	Range of honing hole diameter	mm	40~178	Matched with MFQZ40~62
2	Max. honing hole depth	mm	300
3	Workpiece size (L*W*H)	mm	1168*558*673
4	Workpiece weight	kg	680 (incl. the fixture)
5	Spindle motor	kw	2.2
6	Spindle speed	rpm	90~350 stepless adjustable
7	Stroke motor	kw	0.75
8	Stroke rate	Hz	40~80 stepless adjustable
9	Stroke length range	mm	0~240
10	Cooling pump motor	kw	0.12
11	Coolant capacity volume	dm3	210
12	Floor area (L*W*H)	mm	2318*1835*2197
13	Machine tool net weight	kg	860
14	Machine tool weight (with coolant)	kg	1100
15	Ground load	kg/m2	800
16	Gross weight of machine tool (with package, without coolant)	kg	1100

Model SHM-100
Vertical Honing Machine
Main specifications

No.	Items	Unit	Parameters
1	Honing diameter	mm	Φ 28 ~ Φ 100
2	Max. honing depth	mm	200
3	Spindle up and down reciprocating speed		Manual
4	Worktable size(L * W)	mm	290 * 150
5	Work chamber scope(L * W)	mm	390 * 200
6	Cooling pump motor power	kW	0.04
7	Spindle speed	rpm	125,250 (Three-phase)	200,290 (Single-phase)
8	Main motor power	kW	0.37 / 0.18	0.55
9	Voltage	V	3-380,3-220	1-220
10	Frequency	Hz	50,60	50,60
11	External dimensions(L * W * H)	mm	400 * 580 * 1600
12	Main unit weight	kg	117

MODEL 3MB9808 VERTICAL CYLINDER HONING
Main technical specifications

NO.	Item	Unit	Technical data
1	Max. honing diameter	mm	Φ40~Φ82
2	Max. honing depth	mm	200
3	Spindle speeds	r/min	200-280
4	Spindle strokes	stroke/min	19-27
5	Spindle travel	mm	70
6	Motor power	kw	0.55
7	Motor power of cooling pump	kw	0.09
8	Dimension of the table surface	Mm1300	600×380
9	Voltage	V	3-220,3-380
10	Frequency	Hz	50	60
11	Exterior dimension of the machine(L×W×H)	mm	600×1200×1300
12	Machine weight	Kg	250

3MQ9814 LIGHT CYLINDER HONER MACHINE
echnical Parameters

1.	Bore honing diameter range	Φ40~Φ140mm
2.	Max.bore honing depth	320mm
3.	Honing spindle speed	125/250rpm
4.	Max.spindle stroke	340mm
5.	Spindle lifting and lowering speed (stepless)	0-14m/min
6.	Working accuracy
	(1)Cylimdricity	0.0075mm
	(2)Circularity	0.0050mm
	(3)Surface finish	0.63
7.	Total capacity of electric motors;	2.52KW
	Including :Honing head motor	0.90KW
	Oil pump motor	1.50Kw
	Cooling pump motor	0.12Kw
8.	Power supply
	Voltage	AC380V,220V
	Frequency	50Hz 60Hz
9	Overall dimensions	1300*812*2075mm
10	Net weight	650Kg

HONING MACHINES
Model VHM170 Vertical Honing Machine
Instructions to Installation, Debugging and Operation

No.	Item	Unit	Parameters	Remarks
1	Range of honing hole diameter	mm	40~178	Matched with MFQZ40~62
2	Max. honing hole depth	mm	300
3	Workpiece size (L*W*H)	mm	1168*558*673
4	Workpiece weight	kg	680 (incl. the fixture)
5	Spindle motor	kw	2.2
6	Spindle speed	rpm	90~350 stepless adjustable
7	Stroke motor	kw	0.75
8	Stroke rate	Hz	40~80 stepless adjustable
9	Stroke length range	mm	0~240
10	Cooling pump motor	kw	0.12
11	Coolant capacity volume	dm3	210
12	Floor area (L*W*H)	mm	2318*1835*2197
13	Machine tool net weight	kg	860
14	Machine tool weight (with coolant)	kg	1100
15	Ground load	kg/m2	800
16	Gross weight of machine tool (with package, without coolant)	kg	1100

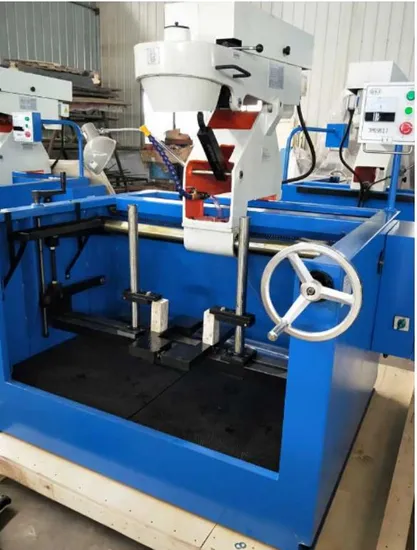

MODEL 3MB9817 VERTICAL CYLINDER HONER
Cylinder Honing Machine:
Model: 3MB9817
Features
The machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
- The machine table can shift of the fixture change 0 degree, 30degree, 45degree
- The machine table is easily up and down manually 0 -180 mm
- Reverse precision 0-0.4mm.
- Select mesh-wire degree 0-90degree or non-mesh-wire.
- reciprocating speed of up and down 0-30m/min
- The machine is reliable performance widely use honing, easy operation and high productivity.
- Good rigidity, amount of cutting
Model: 3MB9817, 3MB9808, 2M2217A.

---
