Lifcore Towable Hydraulic Telescoping Articulated Boom Lift Trailer Spider Lifts

Product Description

Product Description

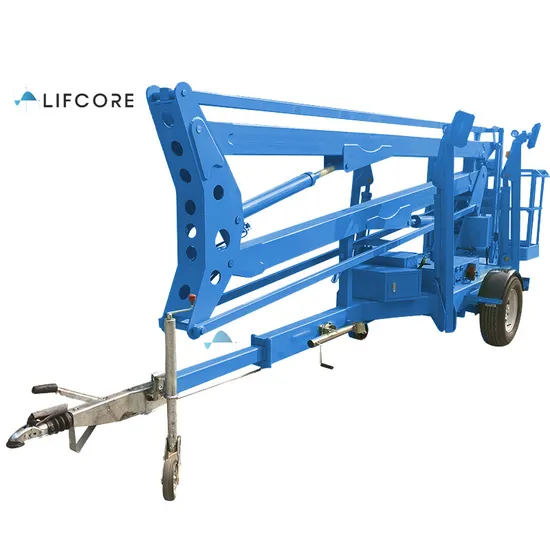

LIFCORE Towable Hydraulic Telescoping Articulated Boom Lift Trailer Spider Lifts
Boom lift is widely used in installation, maintenance and climbing operations in municipalities, electricity, street lights,advertising, communications, photography, gardens, transportation, docks, airports and ports, large industrial and mining enterprises and other industries.It is suitable for various rugged terrains in the field, and has a wide range of space operations. It is mainly used for construction, bridge construction, shipbuilding, airports, mines, ports and docks, construction of communication and power facilities, and outdoor advertising.
Towable boom lift is a hydraulic lifting tool that rotates 360°to lift pedestrians or goods. The Towable boom lift has the
characteristics of convenient movement, simple operation, large working radius and good balance performance. At present, we provide boom lift with a lifting height of 10 to 22 meters, a load of 200kg, and a working radius of 5-12.5m.
For Towable boom lift, the main structure of the cantilever lift has four outriggers, the arm, a work basket platform for carrying staff, and the bottom control system. It has durable tires and trailer hooks, which can be moved in different working locations by the trailer, and the outriggers can allow it to work on uneven ground.We can also add auxiliary walking power device and remote control for you to quickly move lift to the designated area in the working area. Detailed Photos

Model Number	dimension(mm)	lifting height(m)	working height(m)	platform size(mm)	Weight (ton)	loading capacity(kg)	Working radius(m)
LKTBL-10	6300*1680*2100	10	12	900*700	1.7	200	5.5
LKTBL-12	7300*1680*2100	12	14	900*700	2.0	200	6.5
LKTBL-12	5800*1680*2100	12	14	900*700	2.1	200	7.8
LKTBL-14	6800*1680*2100	14	16	900*700	2.4	200	8.5
LKTBL-16	6900*1680*2200	16	18	900*700	2.6	200	10.5
LKTBL-18	7600*1800*2250	18	20	900*700	4.3	200	11
LKTBL-18	6600*1800*2250	18	20	900*700	4.1	200	10.5
LKTBL-20	6900*1900*2250	20	22	900*700	4.5	200	11
LKTBL-22	6900*1900*2250	22	24	900*700	4.6	200	11

Trailer traction uses ALKO, we use different specifications for the lift according to different models.
The platform has safety guardrails and is equipped with lights and a control system
The lifting speed of the boom can be adjusted by the valve
The four control rods can respectively control the four outriggers supporting the boom lift
The hydraulic oil tank has an oil volume indicator, which can provide a reference when replacing the hydraulic oil
The gasoline engine of the boom lift is a Honda gasoline engine, which is efficient and durable, and also has EPA certification
All hydraulic oil pipes of lift adopt high-pressure explosion-proof oil pipes, and the joints are sealed with high pressure
The plane working range of the lift can be 360°, which can make the working range of the lift wider without moving the lift
The lift has a variety of power options, AC/DC/gasoline/diesel, you can choose the power according to your needs, and can provide you with a variety of power on one lift
All the lines and pipelines on the boom will be wrapped and protected
All models of lift can be produced and tested within 20 working days.
Each model can be transported in a 20-foot container, 10/12/14/16, and a 40-foot container can hold 3 units
Company Profile

Construction would have never been that convenient if there were no aerial work platform solutions in place.From construction sites to offices and homes, hydraulic lifts and elevators play a pivotal role in managing the lifting requirements. Manufacturing hydraulic lifts that deliver reliability and services require extensive experience, dedication, and professionalism. Lifts and elevators have become an essential part of our lives.
From being used in businesses to homes, these lifts provide convenience, efficiency, and comfort. we are dedicated to providing our clients with the best quality lifts and elevators at highly affordable rates.
Lifcore is an independent and professional lift platform and home elevator manufacturing factory in the heart of China's manufacturing origin. We introduce ourselves as the hydraulic lift platforms supplier and take pride in serving our clients with excellent quality customized lift solutions. We are a certified and bonded business that ensures you get the best product and service experience.
What We Offer
We are the biggest hydraulic lift, and home lift Manufacturer Company, offering a wide range of scissors, lifts, residential villa home lifts, boom lifts, hydraulic lift platforms, and home elevators. Our products are conceptualized, designed, and manufactured at our own facility to ensure excellent quality at each step of the process.

---
