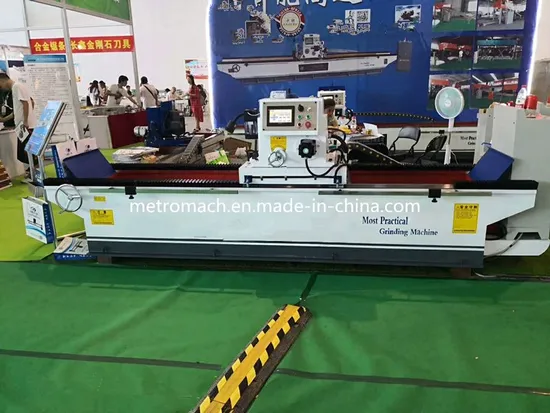

High Precision Automatic Woodworking Knife Grinder Machine

Product Description

High Precision Automatic Woodworking Knife Grinder machine
1.This machine can work types: straight knife, knife like peeling knife, knife granulator, slicing knife, knife, scissors and so on.
2 Longmen frame design, combined with high quality steel welding, the elimination of internal stress, the elimination of internal stress. The body has a high strength and good rigidity.
3.grinding head with special motor. It can adjust the direction of axial clearance, stable transmission, long service life, high precision.
4 the vertical motion of the ball screw is used to ensure the accuracy.
5 the working platform adopts electromagnetic chuck, and it is very convenient to use a knife. The working table is easy to adjust the angle of the worm wheel and worm.
6 rail with linear guide rail to ensure the stability of the horizontal motion of the grinding head. Taiwan HIWIN linear guide rail imports.
7 use of transducer. Easy to adjust grinding head horizontal and vertical speed.
8 the working accuracy of the machine is 0.01mm
Parameters:

Machine name	Automatic knife grinder
Machine model	DM1815
Max. Grinding length	1500mm
Working platform width	200mm
Working platform angle	±90°
Grinding motor power	4Kw
Linear speed of grinding wheel	15m/s
Sliding plate speed	CVT
Machine size	3300 x 1400 x 1400mm
Machine weight	1980Kgs
