New Type Mini Film Extrusion Blowing Machine Film Blown Small Plastci PE Extruder Machines

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
SJ-50
Raw Material
PE
Maximum Folding Width of Film
600mm
Screw Diameter
50mm
Automation
Non-Automatic
Computerized
Non-Computerized
Machine Weight
2.2 T
Certification
CE, ISO9001:2008
Max. Extrusion Output (Kg/H)
30-50kg/H
Film Thickness(mm)
0.006-0.10
Main Motor
Siemens Brand
Die Size(mm)
50/100
Temperature Controller
Omron Brand
Guarantee
One Year
Delivery Time
20 Days
Transport Package
Film Package
Specification
SGS
Trademark
NuoSheng
Origin
China(Mainland)
HS Code
847790000
Production Capacity
15 Sets/Months

Product Description

Key Features

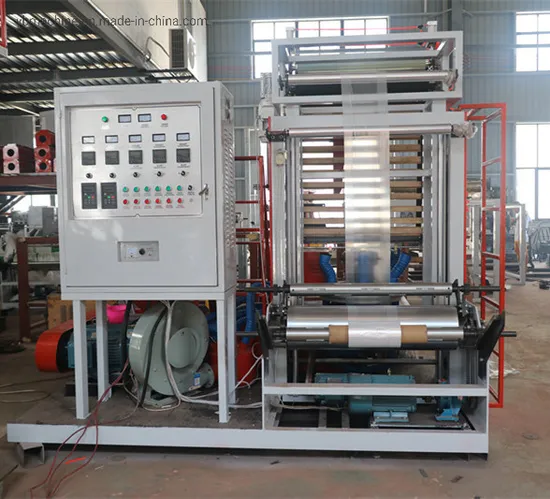

Mini blown film extruder
1. For producing small size HDPE LDPE film
2. Compact design makes it Space-saving and Ready-to-use
3.is extremely compact, easy to install, user-friendly and productive for film and bag makers.
Machine Advantages
The Mini Film Blowing machine is adjust and operate freely within the range of 600mm accordance with the technological demand of different materials, and having gusset for making vest type bag. The extruder,cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in precision way. Hence it is sound in hardness,durable in corrosion resistance.The specially-designed screw is of sound quality in plasticizing,which helps increase the production capacity,it is applied to blowing the plastic films like low density polytene(LDPE).High density polytene(HDPE) and linear low density polytene(LLDPE). It is widely applied to producing the packing bags for foodstuff clothing,rubbish bag and vest ones.
Machine Parameters
Model sj-45 sj-50
Diameter of Screw(mm) φ 45 φ 50
Max. Width of Folded Film (mm) 100-400 200-600
Single-face Thickness of Film(mm) 0.01-0.10 0.01-0.10
Max. Extrusion(kg/h) 35 50
L/D 28: 1 28: 1
Power of Main Motor(KW) 7.5-11 11-15
Power of Traction Motor(KW) 1.1 1.1
Heating Power(KW) 11 11
Overall Dimension (mm) 3800× 1900× 3000 5500× 2100× 3500
Weight(T) 1.5T 2T
