1325 9015 Stone Engraving Machine CNC Router /Marble Cutting/Artifical Stone/Granite Cutting/Aluminum Cutting

Product Description

1325 9015 Stone Engraving Machine CNC Router /Marble Cutting/artifical Stone/Granite Cutting/Aluminum Cutting
Product Description

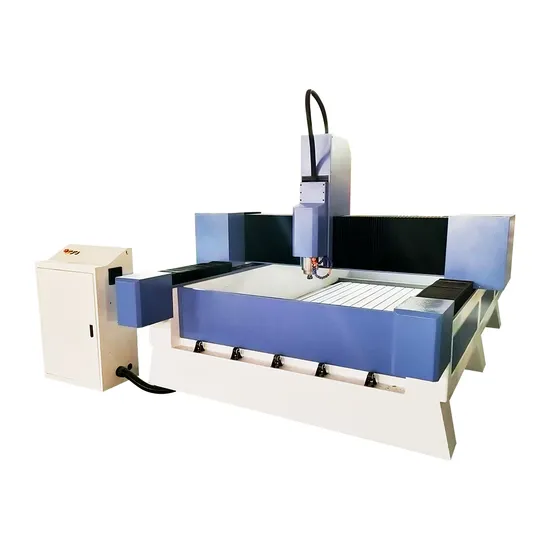

The body is welded with thick wall steel tube, which is treated by high temperature tempering, to ensure that the body has less deformation, good rigidity and strength The Y axis adopts high precision and two way rack and pinion meshing transmission, with high precision and fast speed. Z axis adopts Taiwan TBI balls crew, high precision XYZ are used in the research and control of large drives. Adopt imported square linear guide, high precision, high bearing redundancy, long life The machine tool is equipped with a sink and automatic water supply cooling system All the dust and waterproof design, the full range of protection of the machine parts.
9015 size
Product Parameters

Model NO.	LS1325
X Y Z Traveling Area	1300*2500*200mm
Table Structure	Aluminum profile
X Y Transmission	XY is with helical helical Rack Gear
Z Transmission	TBI brand ball screws
X Y Z Guide Rail	TAIWAN HIWIN 20mmSquare Rail
Spindle Power	5.5KW Water Cooling HQD brand
Spindle quantity	1 PIECE
Max. Spindle Power	24000 r/min
Max. Traveling Speed	15 m/s
Max. Working speed	10 m/min
Driving System	Stepper motor and leadshine driver
Command Language	HPGL, G Code
Software	Castmate Artcam Typs 3 March 3 Wentai
Operation System	Mach 3 controller
Working Voltage	AC380V, 3p.50HZ/220V,3P.50HZ
Packing	Wooden case
Net Weight/Gross Weight	1300KGS /1500KGS
Package Dimension	3.2*2.15*2.2m
Payment	TT with 30% in advance and the balance need to be paid before shipping

Our Advantages
5.5KW or 7.5KW water cooling spindle, We recommend HQD brand, good quality bearing inside, stonger working power,and good serrice
Rigid PVC table, with aluminum profile for clamp. and auxiliary feeding wheels for easy loading marble,stone sheet
Origial three axis DSP A11 controller,no need connect computer.easy for operation ,and 4m or 6m cable wire ,convenient using
Smart controll box. famous brand electrcial lower pressure parts, China CHINT or Frannce schneidar ,.

Application
.. Designed specifically for customers who require large quantities of small workpiece processing. It is suitable for processing cabinet doors, art relief screens, craft windows, relief craft gifts, solid wood art murals, woodworking calligraphy carving, art photo frames, electrical countertops, sports equipment, violin arc, carving and cutting of non-ferrous metals, etc. industry
