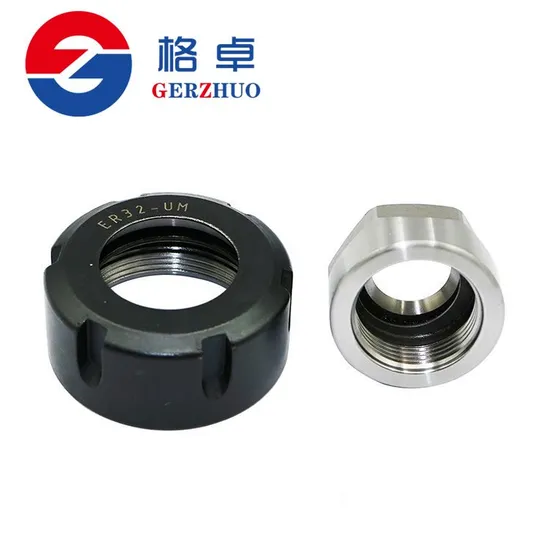

CNC Milling Machine Tools Er25-Um Type Clamping Nut for Er Collet Tool Holder Chuck

Product Description

Product description
1.material:40Cr/20CrMnTi
2.hardness:HRC44-48/52-60
3.Type:A/B/M/TI/T2
4.Balance nuts also available.
5. Hardened & Precision Ground
Technical specification

Order No.	Type	D(mm)	L(mm)	M	Wt(kg)
ER11-A	A	19	11.3	M14×0.75	0.005
ER16-A	A	28	17.5	M22×1.5	0.01
ER20-A	A	34	19	M25×1.5	0.05
ER25-B	B	42	20	M32×1.5	0.14
ER32-B	B	50	22.5	M40×1.5	0.20
ER40-B	B	63	25.5	M50×1.5	0.30
ER50-B	B	78	35.5	M64×2	0.50
ER8-M	M	12	12	M10×0.75	0.005
ER11-M	M	16	12	M13×0.75	0.01
ER16-M	M	22	18	M19×1	0.05
ER20-M	M	28	19	M24×1	0.05
ER25-M	M	35	20	M30×1	0.08
ER11-T1	T1	19	11.3	M14×0.75	0.005
ER16-T1	T1	28	17.5	M22×1.5	0.01
ER20-T1	T1	34	19	M25×1.5	0.05
ER25-T2	T2	42	20	M32×1.5	0.14
ER32-T2	T2	50	22.5	M40×1.5	0.20
ER40-T2	T2	63	25.5	M50×1.5	0.30
ER50-T2	T2	78	35.5	M64×2	0.50

Our service
1.Quality.
2.Large order fast producing ability.
3.True manufacturer directly sales.
4.Good communication satisfy you at the best level.
5.Cooperative spirit cares your marketing strategy.
6.Flexible solutions concerning lower your cost.
7.Non-stop improving on our major, quality and service.
Company information
YUCHENG GERZHUO MECHATRONICS TECHNOLOGY Co., Ltd is a competitive private enterprise engaged in production of machine tool parts. Machine tool parts includes varied of series, and full range specification, specialized in advantage of ER collet, tool holders and accessories. We have established long-term friendly cooperation relationships with numerous customers all over the world as following: USA, Sweden, Russia, Spain, France, Italy, Britain, Germany, South-east countries, Latin America countries, Africa countries and so on.
We guarantee the security and quality of our product by optimized and centralized product selections, and have built strong partnerships with well-known companies in the industry in China.
