Hydraulic Heavy Duty Disc Harrow for 150-200HP Tractor Trailed Agricultural Machinery Folding

Product Description

Product Description

Mounted light duty disc harrow
Model	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.3
Width of cut(mm)	1100	1300	1500	1700	1900	2300
Depth of cut(mm)	120
Q'ty of disc	12	14	16	18	20	24
Weighht(kg)	200	220	240	260	310	360
Tractor power(hp)	15	18	25	40	50	60
Mounted	CATALOG I			CATALOG II

Mounted Middle duty disc harrow
Model	1BJX-1.6	1BJX-1.8	1BJX-2.0	1BJX-2.2	1BJX-2.4	1BJX-2.5
Width of cut(mm)	1600	1800	2000	2200	2400	2500
Depth of cut(mm)	140
Q'ty of disc	14	16	18	20	22	24
Weighht(kg)	350	380	420	470	540	650
Tractor power(hp)	30	40	50	60	70	80
Mounted	CATALOG II

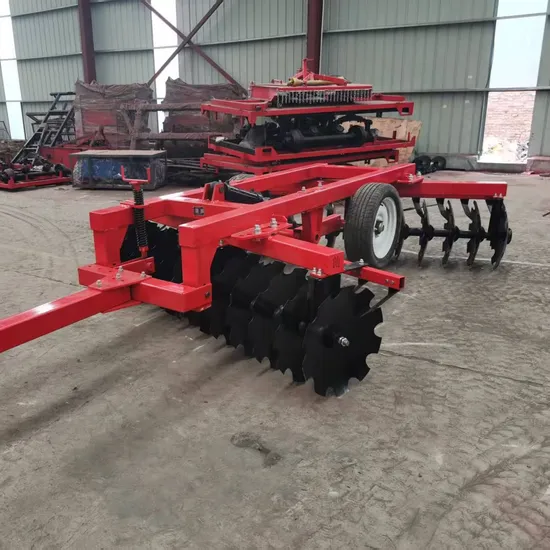

Heavy duty hydraulic disc harrow
Model	1BZ-1.8	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0	1BZ-5.3
Width of cut(mm)	1800	2200	2500	3000	3400	4000	5300
Depth of cut(mm)	200
Dia of disc(mm)	660
Q'ty of disc	16	20	24	28	32	36	48
Weighht(kg)	1160	1250	1350	1430	1550	1900	2500
Tractor power(hp)	70	80	90	100	120	150	180

Perhaps you have a deep understanding of this,
and these problems have been bothering you!

Tired and troublesome Low work efficiency
HIGH EFFICIENCY
The medium harrow is suitable for breaking soil after ploughing, preparing land before sowing, loosening soil, mixing soil and fertilizer, and stubble removal of light and medium soil. The machine has a reasonable structure, is sturdy and durable, easy to use, simple to maintain, has strong soil breaking and soil penetration ability, and the surface is flat after harrowing, which can meet the agronomic requirements of intensive farming.
