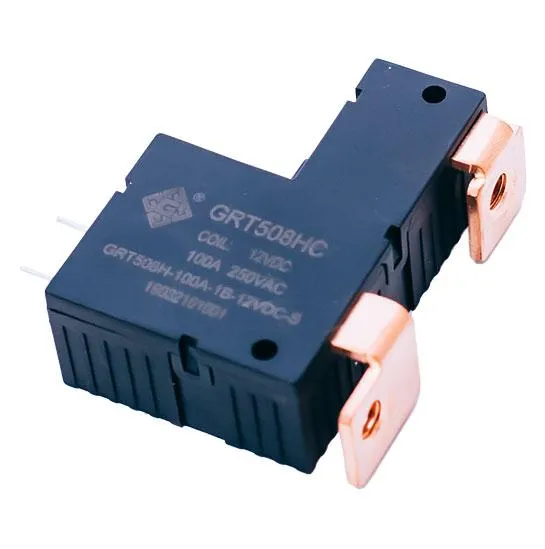

1-Pole 100A Electrical Bistable Relay (GRT 508HC)

Product Description

Product Description
1-pole Latching Relay
100A contact switching capability
Only impulse excitation needed, both for single and double coil.
Low power consumption, small in size
Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
4KV dielectric strength between coil and contacts.
RoHS compliant
Outline dimensions:(58x 40 x20.8) mm
Product Parameters
Contact Data

Contact Form	1B
Contact Material	AgSnO2
Contact Resistance	Max. 1.0MΩ (1A 6VDC)
Rated Load ( Resistive)	100A 250VAC
Max. Switching Voltage	440VAC/28VDC
Max. Switching Current	100A
Max. Switching Power	25000VA/2800W
Mechanical Service Life	1x105 OPS
Electrical Service Life	6x103 OPS
Max. Short-circuit Current	1500A/10ms

Characteristics

Operate Time	Max. 25ms
Release Time	Max. 25ms
Insulation Resistance (500VDC)	Min. 1000MΩ
Dielectric Strength between Contact & Coil	4000VAC
Dielectric Strength of Contact Opening	2000VAC
Dielectric Strength between Contacts
Surge Voltage from Contact to Coil	6KVAC
Creepage Distance	8mm
Unit Weight	about 95g

Environment Data

Ambient Temperature	-40ºC~ 85ºC
Relative Humidity	5%~85%RH
Vibration	10~55Hz 1.5mm
Shock	98M/S2 (functional)
	980M/S2 (survival)

Coil Data

voltage	resistance(Ω)±10%		power(W)		operating	releasing	allowing	pulse duration
	single	double	single	double	VDC	VDC	VDC	ms
6	16	8/8	2.25	4.5	≤4.2	≤4.2	9	≥90
9	36	18/18			≤6.3	≤6.3	13.5
12	64	32/32			≤8.4	≤8.4	18
24	256	128/128			≤16.8	≤16.8	36

Drawing
Typical Terminal Type
