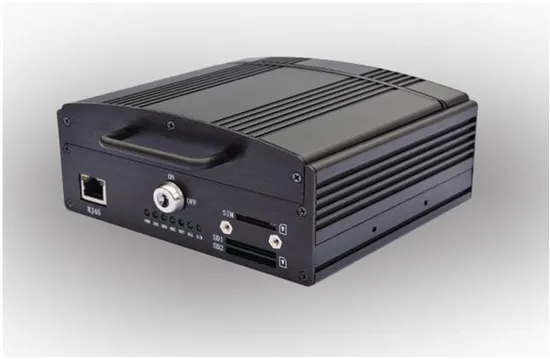

| Model | SE-5308XVR |
| Video Compression | H.265, H.264 |
| Video System | NTSC/PAL |
| Operation System | Linux(Embedded) |
| Analog video-input | 8ch BNC |
| IP Video Input | 2ch,(only IP up to 4ch) |
| Composite Video Input | Up to 6ch (Analog video + IP video) |
| Video Output | HDMI/VGA Output |
| Audio input /output | 4ch input, 1ch output |
| Display | Resolution | 5MP-/4MP-N/3MP/1080P/720P/960H |
| Feature | 1/4/6/8/9 |
| Record | Resolution | 5MP-N/4MP-N/3MP/1080P/720P/960H |
| Speed | 4x5MP-N@20fps; 4x4MP-N/4x 1080P/720P@25fps |
| IP: PAL: 25fps(each ch), NTSC: 30fps(each ch) |
| IP-Recording Bandwidth | 16Mbps ~48Mbps( default is 16Mbps, decrease one Analog channel can increase 8Mbps ) |
| Maximum output Brandwidth | 48Mbps |
| Maximum decode performance | 8x5MP-N@20fps; 8x4MP-N/8x 1080P/720P@25fps |
| Recording Mode | Continuous/Manual/Motion detect |
| Synchronous Playback | 8CH |
| HDD interface | 1SATA HDD, up to 8TB |
| Multiplex Operation | live display, record, playback, backup and network |
| USB | 1xUSB3.0 1*USB2.0(for mouse and backup/upgrade) |
| Sensor & Alarm I/O | NO |
| PTZ Control | / |
| Mobile Surveillance | Support Mobile Phones based on IOS and Android operation system |
| VGA/HDMI | 1280*1024,1920*1080, 1680*1050, 1920*1080 |
| Power Supply | DC 12V/2A |
| Dimension(WxDxH) | 300X227X53mm |
| Working Temperature | -10°C~+55°C |
| Working Humidity | 10%~90% |
