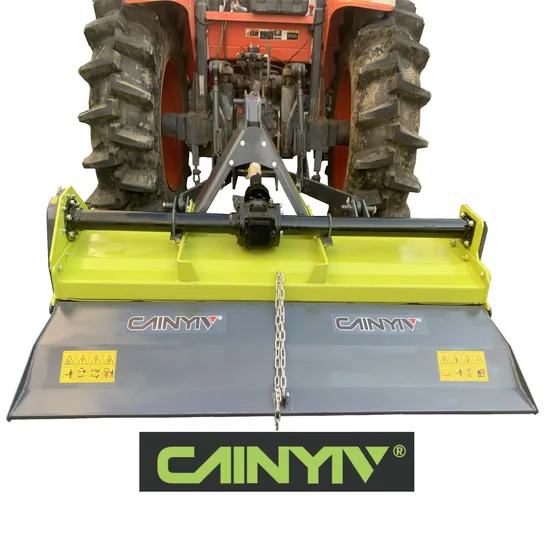

Tractor Driven Pto Rotary Tiller Cultivator

Product Description

MODEL	IGN 90	IGN 105	IGN 125
Structure Weight	250kg	265kg	285kg
Tilling Width	895mm	1045mm	1245mm
Tilling Depth	150mm	150mm	150mm
No. Of Blade	18	24	30
PTO Turning Speed	540r/min	540r/min	540r/min
Tractor HP	16-20hp	20-28hp	25-30hp

MODEL	IGN 135	IGN 150	IGN 180
Structure Weight	300kg	320kg	350kg
Tilling Width	1345mm	1495mm	1795mm
Tilling Depth	150mm	150mm	150mm
No. Of Blade	30	36	42
PTO Turning Speed	540r/min	540r/min	540r/min
Tractor HP	25-30hp	30-50hp	40-75hp

Rotary tillers manufactured by Breviglieri are all PTO-driven and are used to loosen and mix both firm soil, during primary tillage, and tilled soil (e.g. during secondary tillage to prepare the seed bed).
The tilling implements, which can consist of hoe, radial blade or spike assemblies mounted on a horizontal rotor (4 or 6 per flange), work by cutting and ripping clods of soil.
Rotary tiller cultivation can be performed as an alternative to plowing. It is useful in that it effectively breaks up the earth, even uprooting crop residue, and therefore generally eliminates the need for additional soil preparation.
These machines are most widely utilized in the horticulture sector and on naturally loose ground; the working depth is generally not greater than 15 cm.
We provide good design, to help customers reduce costs of development and improve production efficiency. With complete testing equipment, strict quality control and abundant technical force, our machines are mainly exported to European, North American and Southeast Asian countries.
All of our machines are with one year warranty. We often insist on one principle"Better quality!Better service!Better price!"

---
