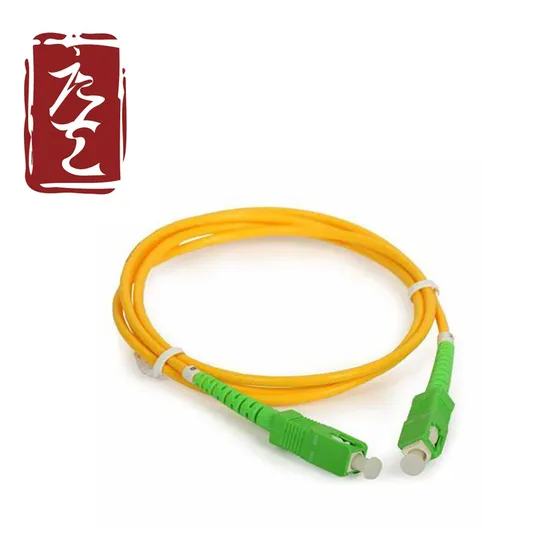

OEM Patch Cord Good Signal Data Transmission Jump Cablr Sc-Sc G652D G657A1 G657A2

Product Description

Product Description Fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".
SC-SC fiber optic patch cord is used for linking the equipment and components in the fiber optic network. They are various kinds of fiber optic connector types. The fiber optic patch cord types are classified by the fiber optic connector types. There are PC, UPC, APC type fiber patch cord. They are different because of the polish of fiber connector.
Material (External) :PVC, LSZH, OFNP
Connector Type: SC to SC
Core : Single mode Fiber
Density: Simplex Or Duplex
Length:2m
Feature 1. Low insertion and back reflection loss
2. Good exchange ability
3. Good durability
4. High temperature stability
5. Standard: Telcordia GR-326-CORE

Application 1.FTTH , CATV, LAN, MAN, WAN, Test &Measurement
2.Video transmission , Data transmission
3.Active Device Termination
4.Premise Installations
5.Telecommunication and Data processing Networks
6.Industrial, medical
7.Systems Integration for Long Haul, Metro and Access Network

Technical Data

Item	Unit	LC/SC/FC/ST Fiber Patch Cord
		SM		MM
Fiber Diameter	UM	9/125		65.5/125		50/125
Polishing		PC	UPC	APC	PC	PC
Insertion Loss	dB	≤0.2	≤0.15	≤0.2	≤0.1	≤0.1
Return Loss	dB	≥55	≥50	≥60	≥35	≥35
Insert-pull Test	dB	≤0.2	≤0.2	≤0.3	≤0.15	≤0.15
Interchangeability	dB	≤0.1	≤0.1	≤0.15	≤0.1	≤0.1
Temperature Range	ºC	-40~+80
Durability	≥1000
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber	9/125um, 50/125um,62.5/125um,ect
Diameter	0.9mm 2.0mm, 3.0mm etc
Cores	Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

Packing Detial 1m/ 3m/ 5m/ 10m/ 15m/ 20m in a poly-bag 30m/ 50m/ 80m/ 100m/ 150m/ 200m/ 300m/ 500m in a roll, then Customized packing are welcomed!

FAQ 1. What' s our main product? TY dedicated to the developing, production, marketing of the Coaxial cable, Fiber Optic Cable. Indoor/ Outdoor Patch Cord, Communication cable, and so on.
2. Do you provide samples? Is it free or extra? Some of low value samples can be free for you, but you need pay for the express cost.3.
3. Can i negotiate the prices? Yes, we may consider discounts for multiple container load of mixed goods.
4. Can you produce according to the samples? Yes,we can produce by your samples or technical data.
5. How can i get your catalogue and price list? Please let us know your email or contact us from website directly for our catalogue and price list.
6. Do you provide OEM service? Yes, We supply OEM&ODM service.we can print your logo or label on the products or on the box.
7. Why choose us? Our company has more than 10 years experience of manufacturing of coaxial cable, optical communication units and doing network system integration system,we have our own production factory and stable raw material suppliers of many years cooperation. So our products have very stable quality and competitive price.
8. How much will the shipping charges be? It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
9. Shipping& Delivery For large orders:by sea(LCL or FCL)
For small orders:by sea(LCL), by air or by courier services, any of which is optional.
10. I haven't bought anything from China. Can I buy it?
We cooperate with shipping companies. Our company has a professional transportation and delivery team. Our colleagues will help you and finally let you receive your goods smoothly.
If you can't find the products from our web, pls send the inquiry to us,even if we can't produce them ,we know china market very well ,so maybe we can tell you where you can buy the products you needed !

---
