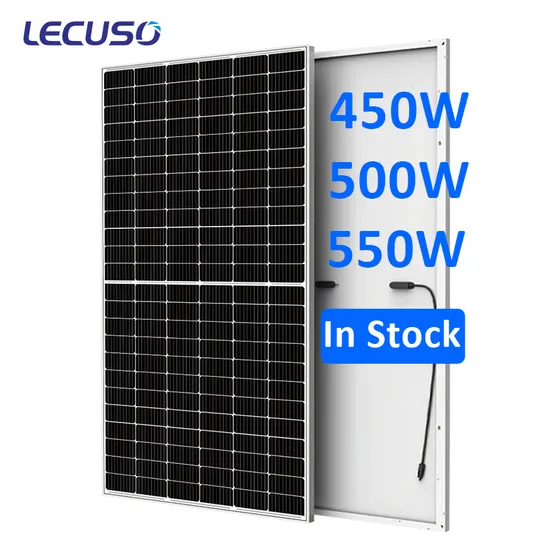

Lecuso Half Cell Monocrystalline 400W 450W 500W 540W 550W Solar Panel Price

Product Description

Product Parameters

Model Mono solar panel	300M-60	330M-72	360M-72	390M-72	480M-96	500M-96	520M-96
Rated Maximum Power at STC	300W	330W	360W	390W	480W	500W	520W
Open Circuit Voltage(Voc/V)	32.1A	38.4V	39.1V	39.8V	48.7V	49.1V	49.5V
Maximum PowerVoltage(Vmp/V)	9.5A	8.59A	9.21A	9.8A	9.86A	10.18A	10.51A
Short Circuit Current(Isc/A)	38.52V	46.08V	46.92V	47.76V	58.44V	58.92V	59.4V
Maximum Power Current(Imp/A)	9.81A	9.02A	9.67A	1029A	10.35A	10.69A	11.03A
Module Efficiency(%)	18.63%	17.18%	18.74%	20.30%	18.92%	19.71%	20.50%
Power Tolerance	-0~+5%
Standard Test Condition(STC)	Irradiance 1000W/m2,Cell Temperature 25ºC,Air Mass1.5
Application Class	Class A

Product Description N-Type Dual Glass Half Cut Cell Panels
Offering OEM services. Reliable after-sale service.
LECUSO MONO half-cut single / double glass module,as sembled with multi-busbar PERC technique and half-cut structure, which can not only absorb the energy from the front of the module, but also absorb the reflected light and the scattered light from the back, offer the advantages of higher power output,reduce shading effect on the energy generation,enhance the mechanical load bearing capacity as well.
Key Features
★Multi Busbar Technology: Better light utilization and current collection improve product power output and reliability.
★Half-cut Technology: The internal power loss of the half-cut module is reduced to 1/4 for the whole mould.
★PID Resistance: Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
★ 12 Year Product Warranty
★ 30 Year Linear Power Warranty
★ 0.40% Annual Degradation Over 30 years
