Paper Extrusion Coating Laminating Machine

Product Description

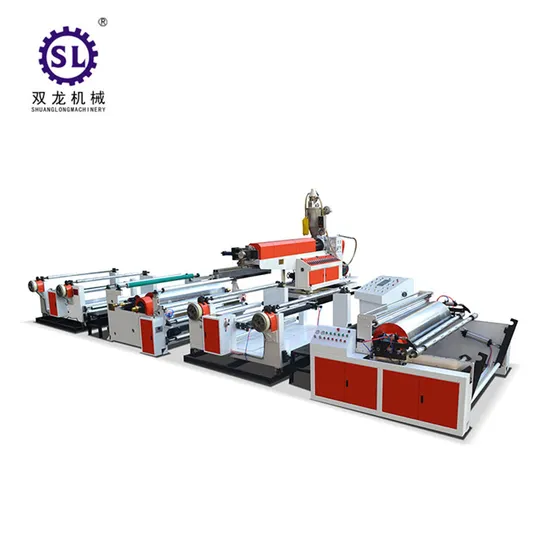

Extrusion Coating Laminating Machine
Product Description
Feature:
1.T-Die : it applies to high precision Hanger-type.Width of lamination is adjustable.
2.The Unwinding Device,Laminating Device and Rewinding Device synchronized auto control.
3.Large diameter Auxiliary Unwinding Device, suit for laminate various types of substrate.
4.Automatic Roller Changing Device,chang rolls without stopping the machine.
5.The whole machine is PLC computerized control.
6.Equipped with Corona Treatment, Automatic Edge Trimming Device, Production Quantity Calculate,and Adjustable Edge Cutting.
7.Appear of new design structure,nice exterior,easy of installation as well as operation.
Advantages:
SLLM-B The Extrusion Laminating Machine takes LDPE,HDPE,PP, etc. resin as raw material. It processes by melting the plastic particles,extruding from the T-Die and finally laminating with the base material. This type of machine has been widely used for the lamination of substrates such as white cardboard paper,kraft paper, non woven fabric,woven fabric,aluminum foil, gauze, etc. The finished product was famous for its high fastness,uniformity of thickness and high efficiency.AII these have contribute to make this type of machine become one of the most popular and valuable extrusion laminating machine at home and abroad.
Parameters:

Model	SLLM-B800	SLLM-B1000	SLLM-B1200	SLLM-B1600	SLLM-B1800
Max.coating width	800mm	1000mm	1200mm	1600mm	1800mm
Extruding power	25Kw	30Kw	37Kw	37Kw	45Kw
Extruder screw	¢80	¢90	¢95	¢100	¢110
Max.output	160Kg/h	180Kg/h	220Kg/h	240Kg/h	260Kg/h
Coating resin	LDPE,HDPE,PP
Base material	Paper(35-350g/m ),Non-woven fabric,Woven cloth,Aluminum foil
Machine speed	80~150m/min
Coating thickness	0.012mm~0.05mm
Diameter of unwinding (step)	¢1200mm~¢1500mm
Diameter of rewinding (surface)	¢1200mm~ ¢1500mm
Electric controller mode	PLC programmable controller,Touch screen operation
Installing area	13000mm x 7000~9000mm x 2850mm

Detailed Photos
Product Application
Our Advantages
1. We have more than 15 years experience;
2. We are manufacturer who have been exported more than 15 countries;
3. Large production capacity that ensures the shipment on time;
4. Quick responses with full attention
5. Sample fee could be returned after the order has been placed.
6. We guarantee our products quality and pre-sales and after-sales service.
Packaging & Shipping
Packing Details: Packed by pearl cotton and plastic film, some items will packed in wooden ply box
Delivery Time: Within 30-60 days after got deposit
FAQ
Question 1: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.
From SHANGHAI by air is 40mins, by train is 4hours.
From GUANGZHOU by air is 2hours.
Question 2: Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
Question 3: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) , All life time repaire, and 24hours HOT Line.
Question 4: What's the payment method?
Answer: We accepted T/T, L/C, Western Union, Moneygram ETC.

---
