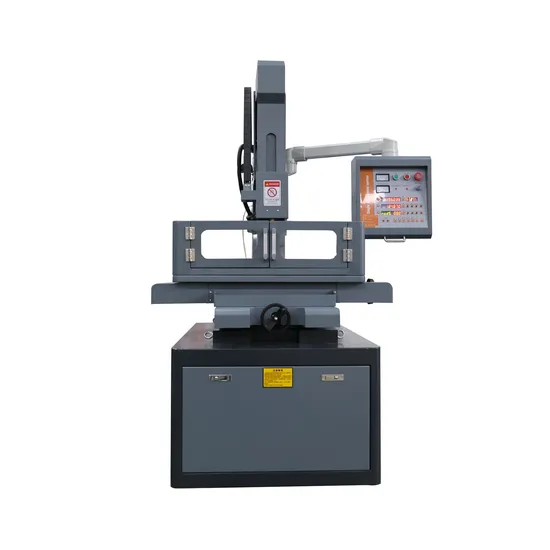

New Upgraded Super Hole Dz703 EDM Machine EDM Drilling Machine

Product Description

1.The machine can process hole diameter of Φ 0.3 ~ Φ 3.0mm, and the maximum depth diameter ratio can reach more than 300:1.
2.The processing speed can be up to 5-40mm per minute, the servo stroke is 300, the ultra long electrode tube can be used, and the drug saving electrode tube is 15%.
3.The machine be able to process various conductive materials such as stainless steel, quenched steel, hard alloy, copper, aluminum, etc.
4.The machine can penetrate directly from inclined plane and curved surface
5.The servo lifting adopts double linear guide rail and electric lifting to ensure the processing accuracy and speed of the product 6.Spindle height 300mm
7.The machine bed is equipped with a water pump pressure observation window, which makes it more convenient and simple to observe and adjust the water pump pressure.
8.x-axis and Y-axis of worktable are equipped with grating digital display, with accurate operation.

Item		Specs
Parameters	Machine tool specifications	DZ703
	X/Y axis travel	400×300mm
	Z-axis travel	300mm
	Secondary stroke of spindle	360mm
	Table size	420X320mm
	Load bearing of workbench	200kg
	Overall dimension	1300X1200X1800mm
	Electrode clamping diameter range	Ø0.3 - Ø3.0mm
	Operating Weight	730kg
	Working fluid	Tap water/distilled water
	Working fluid tank capacity	45L
Processing index	Processing depth	0-300mm
	Maximum depth diameter ratio	300:1
	Maximum processing speed	60mm/min
	Maximum processing current	30A
	Maximum power consumption	3.6KVA
	Working pressure	8 Mpa
	Power input mode	380/50 V/HZ
Configuration	X/Y axis control	Grating ruler DRO
	Z-axis control	Subdivision stepping motor control
	Secondary stroke control mode	AC reduction motor control
	Digital display	3-axis DRO
	Filtering method	Replaceable gap type
	Water pump	Special plunger pump
	Ball screw	Taiwan,China
	Linear guide rail	Taiwan,China
	Guide plate	Taiwan,China
	Motor rotating head	Taiwan (tungsten steel material)
	Marble	Suzhou
	Grating ruler	Guangdong
	Transformer	Changzhou (3.6KW enhanced)
	Resistance	Suzhou 300W super large non-inductive resistor

About us
Our factory was established in May 2008. It is a modern enterprise specializing in CNC equipment development, production, sales and industrial automation. Its main products are vertical processing center, CNC drilling and milling machine, CNC lathe, fast wire cutting, mid-wire cutting, turret milling machine, precision grinder, CNC drilling, EDM drilling and other mechanical processing equipment. In order to develop the domestic and foreign markets, Longkai Technology upholds the business philosophy of stable product performance and excellent quality, and invites agents and franchisees. Provide customers with the best value products and the most thoughtful service is the management philosophy of Longkai. Join Longkai. Create the future! Our Services 1. Your inquiry and email will be replied within 24hours. If you need to develop products with your own specification, we can help you to work it out.
2. Welcome to be our distributors in your country, we can cooperate with each other to do better business.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service! FAQ 1. Payment Method:
30% ~ 50% or 100% deposit T/T in advance(negotiate) for first cooperation;
2. Delivery Time:
15-20 working days after prepayment
3. MOQ:
1 set machine
If you need machine with your own specification, logo, packing, etc, please feel free to contact us!
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
