| US$30,000.00-34,000.00 | 1 Piece (MOQ) |

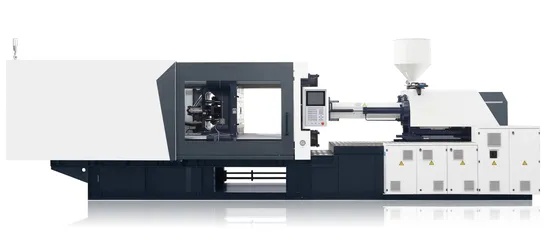

| SPECIFICATION | SM-280 | |||
| SCREW TYPE | A | B | C | |
| Injection Unit | ||||
| Screw diameter | mm | 55 | 60 | 65 |
| Screw L/D ratio | L/D | 22.5 | 20.6 | 19 |
| Shot volume(theoretical) | CM3 | 665 | 792 | 929 |
| Injection weight(PS) | g | 605 | 721 | 845 |
| Injection rate | g/s | 220 | 263 | 308 |
| Injection pressure | Bar | 2190 | 1840 | 1568 |
| Screw speed | rpm | 225 | ||
| Clamping Unit | ||||
| Clamping force | KN | 2800 | ||
| Open stroke | mm | 560 | ||
| Space between tie-bars(W*H) | mm | 630*580 | ||
| Max mould height | mm | 650 | ||
| Min mould height | mm | 230 | ||
| Ejector stroke | mm | 160 | ||
| Ejector force | KN | 70 | ||
| Others | ||||
| Max pump pressure | Bar | 16 | ||
| Motor pump power | Kw | 36.7 | ||
| Heating power | Kw | 18.2 | ||
| Machine dimension(L*W*H) | M | 6.1*1.53*1.86 | ||
| Oil tank cubage | L | 400 | ||
| Machine weight | Ton | 9 | ||
| Items | Brand/country | |
| Servo System | Controller | TECHMATION -8' (TAIWAN ) |
| Servo Motor | INOVANCE (CHINA) | |
| Servo Drive | INOVANCE (CHINA) | |
| Oil Pump | ECKERLE (Germany) or SUMITOMO (JAPAN ) | |
| Electric Unit | Stroke transducer | NOVO or FLTCH (Germany) |
| Breaker | (France ) or LS (Korea ) | |
| Contactor | (France ) or LS (Korea ) | |
| Air Switch | (France ) | |
| Location /Speed Sensor | (France ) | |
| Hydraulic Unit | Hydraulic Direction Valve | YUKEN (Japan) |
| Proportion back-pressure valve | North man (Taiwan) | |
| Plasticizing hydraulic Motor | DAN DUN (ITALY) | |
| Hydraulic Hose | MANULI(ITALY) or GOOD YEAR (USA) | |
| Hydraulic Sealing ring | All Italy and Japan | |
| Others Unit | Mechanical safety | Standard |
| Electric safety | Standard | |
| Mold close fast | Standard | |
| Injection Unit | Linear guide-way | |
| Air core | 1pcs | |
| Hydraulic Core | 1pcs | |
| T slots and screw holes | Standard | |
| Servo system Compared with the other manufacturers is big, Overload ability strong and stable. | ||
