Product Details
Product Description
Product Description
Product Introduction

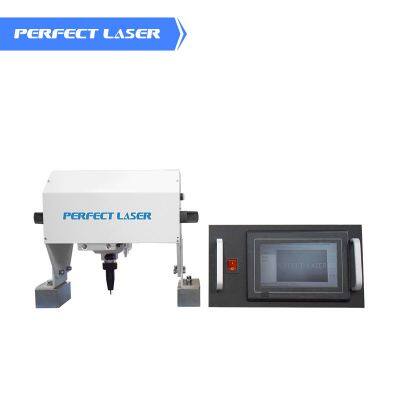

In order to meet the different needs of different customers, this hand-held dot peen marker model PEQD-030E was introduced. This machine supports multiple fonts including MG Font, SHX Font in Auto CAD, CHR in Borland, TTF in Windows and support logos and graphs designed in DXF format from Auto CAD, Corel Draw.The dot peen markers is LCD control type, and doesn't need work with computer. This kind of dot peen markers is convenient to carry so the dot peen markers could be used on heavy work pieces that are hard to move.
Product Features
1.The portable marking head of the dot peen markers is Perfect Laser’s original design, only with 2 Kg, portable and smart, very easy to carry.
2. The dot peen markers needle is made of high-quality imported hard alloy and molded by a precision mold at one time. The rigidity of the needle can reach HRA92, ensuring the accuracy of high-speed marking.
3. The handheld dot peen marker use the United States imports "high-frequency valve", the number of vibration can reach 0.1 to 20 million times, can ensure the long-term stable operation of the machine.
4. Adopting the "positioning switch" imported from Japan can guarantee stable performance and high precision.
5. The dot peen markers use the high-quality "linear motion guide rails" imported from Germany can realize automatic lubrication, dust prevention and wind protection, ensuring the long-term stability and high precision of the equipment.
6.The dot peen markers equipped with Perfect Steel's self-developed ID steel-skin system, it greatly reduces the noise caused by machine operation. In addition, unnecessary waste of energy can be effectively avoided due to the low wear rate.
7.The handheld dot peen marker is maintenance-free and has low operating costs. Its service life may exceed 10 years and the average MTTF may exceed 15,000 hours.
Application
Applicable industries: Automotive manufacturing, aerospace, motorcycle manufacturing, electrical manufacturing, machinery and other fields.
Applicable materials: Various metal and non-metal hard plastic markings, such as stainless steel markings, brass markings, coating material markings, and hard plastic material markings. It's also called handheld dot peen marker,dot peen markers,copper mark machine,copper marker.
Technical Data
Machine Name
| Portable Dot Peen Marking Machine
|
Model
| PEQD-030
| PEQD-030E
|
Machine Type
| Portable Marking
| LCD Control +
Portable Marking
|
Marking Area
| 135×20mm/90×20mm/125×20mm
/150×100mm/200×100mm
|
Marking Accuracy
| 0.01 mm
|
Marking Depth
| 0.01~2mm
|
Marking Speed
| ≤50mm/second
(3-4 number/second for 3mm height letters)
|
Pin Hardness
| HRA 92
|
Power Supply
| 220V±10％, 50HZ
|
Air Pressure
| 0.2-0.6 Mpa
|
Machine Power
| ≤400 W
|
Working Environment
| -5～40 ℃
|
Making Head Weight
| 5 Kg (Portable)
|
Whole Machine Weight
| 25 Kg
| 30 kg
|
>>
