wholesale aluminum base boards smt esd pcb storage magazine racks supplier factory

Product Details

Product Description

Product Description

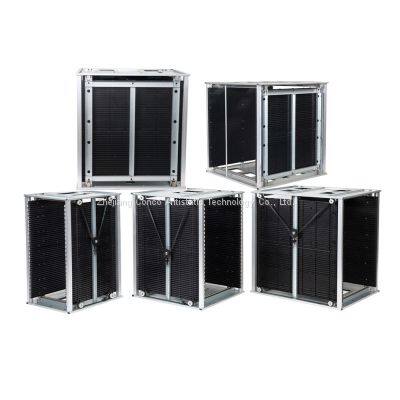

535 x 530 x 563 mm belt adjustment smt pcb magazine rack for pcba assembly
Specification

Name	ESD pcb magazine rack cop-815
Surface resistance	104~106 Ω
Temperature resistance	80° C
Overall size	535 x 530 x 563 mm
Storage capacity	50 pieces of PCB
Specifications	535 x (0-460)mm
Side guide slot	depth 4mm, width 5mm, pitch 10mm
The top and bottom boards	made of metal
Panels material	conductive plastic panel
Packing detail	1pcs into 1 carton , 40 cartons into a wooden case (size 1.2*1.16*1.34m)

Additional accessories can supply :
Product features:
Smt esd pcb magazine rack is made of aluminum alloy column, side panel, The adjustable coupling drive set, static material four parts
our products can bear high strength , quality original materials & anti-aging .
other models:

SKU.	Outer dimension （mm）			Adjust way			Adjustable width（mm）	Weight（kg）	Ref.position		Base material	Side board material	Quantity of PCB Capacity	Max Tolerant Temperature (℃）
	L	W	H	Gear track adjustment	Screw adjustment	Belt adjustment			A	B
COP-801	400	320	563	√	√		50-250	6.9/6.7	34	34	Metal	plastic	50	80/120/200
COP-801L	400	320	563	√	√		50-250	8.8/8.6	34	34	Metal	Aluminum	50	300
COP-802	355	315	580		√		80-250	5	34	34	Plastic	plastic	50	80
COP-803	355	320	563	√	√	√	50-250	5.7/5.5/8.2	34	34	Metal	plastic	50	80/120/200
COP-803L	355	320	563	√	√		50-250	7.4/7.2	34	34	Metal	Aluminum	50	300
COP-805	355	320	563	√	√		50-250	4.2/4.0	34	34	Plastic	plastic	50	80
COP-806	460	400	563	√	√	√	50-330	7.7/7.5/11.2	34	34	Metal	plastic	50	80/120/200
COP-806L	460	400	563	√	√		50-330	9.8/9.6	34	34	Metal	Aluminum	50	300
COP-807	460	400	563	√	√		50-330	8.2/8.0	34	34	Metal	plastic	50	80/120/200
COP-807L	460	400	563	√	√		50-330	10.4/10.2	34	34	Metal	Aluminum	50	300
COP-808	535	460	569	√	√	√	50-390	10.3/9.9	34	34/40	Metal	plastic	50	80/120/200
COP-808L	535	460	569	√	√		50-390	11.5/11.3	34	34/40	Metal	Aluminum	50	300
COP-809	535	530	569	√	√	√	50-460	12.3/11.9/13.4	34	34/40	Metal	plastic	50	80/120/200
COP-809L	535	530	569	√	√		50-460	13.5/13.2	34	34/40	Metal	Aluminum	50	300
COP-810	630	530	563	√	√	√	50-460	14.0/13.6	34	34	Metal	plastic	50	80

Zhejiang Conco Antistatic Technology Co.,Ltd.
TAIZHOU KEXING IMPORT AND EXPORT CO.,LTD
No.1909, Haifeng Rd, Binhai Industrial Zone,Jiaojiang, Taizhou,Zhejiang, China. 318000
TEL: 0086-576-88032009, EXT 612 FAX:0086-576-88032999
Mobile: 0086-13476244030 We chat :Wing870226
Linkedin :1484027524@qq.com
Email: sales003@conco-esd.com 1484027524@qq.com

---
