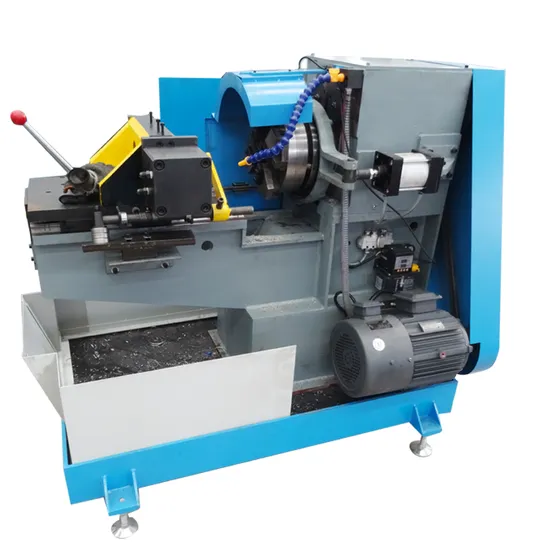

2′′/4′′ Electric Good Quality Double Stations Automatic Big Bore Multi-Function Pipe Threading Machine Pipe Threader

Product Description

Product Description

Large spindle diameter CNC pipe threading machine
QK1353 is an economical, practical and professional CNC pipe threading machine. It is mainly used for pipe thread processing and can cut metric and inch cylindrical taper pipe threads. In addition, this machine tool can also undertake the work of ordinary CNC lathes. Such as: turning arc conical surface, ordinary thread, inner and outer cylindrical surface and other kinds of shafts and disc parts. It can be used in petroleum, metallurgical, chemical, hydropower and geological departments to process drill pipes, drill collars, bushings, and petroleum bushings. It is most suitable for casing processing in the petroleum industry. The normal accuracy of the machine tool can reach IT6-IT7,the surface roughness of the workpiece can reach Ra1.6um. It is the first-choice practical equipment for mass processing of oil pipeline threads.
Application
QK1353 CNC pipe thread lathe is mainly used for pipe thread processing, which can cut Metric and Inch cylindrical and tapered pipe threads. This machine is suitable for processing oil pipes, casings, drill pipes, etc. in the petroleum, metallurgy, chemical, hydropower, and geological sectors.
Selling point
1. The spindle has a large diameter through performance, and the double chuck workpieces are held stably.
2. High-quality and high-strength cast iron casting overall bed has good rigidity and high precision.
3. The surface of the guide rail is quenched by super-audio frequency, which has high strength and long life.
4. The carriage adopts the guide rail surface pasting technology, which has good wear resistance and high precision.
Product Parameters

Item		Unit	QK1353
NC System			Standard configuration:GSK980TDI Optional configuration:FANUC 0i TF;SIMENS 808D;KND K1000Ti;SIMENS 828D
Max dia.swing over bed		mm	1250
Max dia.swing over cross slide		mm	860
Max.length of work-piece		mm	1500
Width of bed		mm	755
Spindle bore		mm	540
Power of spindle motor		Kw	22
Mode of spindle speed			Two gears,smooth adjustment
Range of spindle speed		r/min	L:23-120 H:65-258
Max.traverse of X/Z		mm	X:570 Z:1250
X/Z rapid traverse		mm/min	2000
X-axis motor	Speed	r/min	2000
	Torque	N.m	22
	Power	Kw	2.8
Z-axis motor	Speed	r/min	2000
	Torque	N.m	30
	Power	Kw	3.5
Tailstock quill	Diameter	mm	160
	Travel	mm	300
	Taper		Morse NO.6
Electric tool-post	Model		170A04N
	No.of tool stations		Vertical four-station
	Dimension	mm	300×300
	Turret indexing time	S	5.6
Chuck			Four jaw electric chuck
Positioning accuracy		mm	0.04
Repositioning accuracy		mm	0.02
Overall dimensions(L*W*H)		mm	5000×2800×2200
Machine weight		T	18

Company Profile

FAQ
Q1. What about the payment?
A: We accept L/C,T/T ,D/P and Western Union payment terms.

Q2.Can you provide installation and training for the lathe machine?
A:Yes, we provide installation and training.

Q3:How about your price?
A:Send me about what is your detailed request information, we will give you competitive prices in China.

Q4.What's your warranty terms?
A:The lathe machine for one year warranty from the date of commissioning.

---
