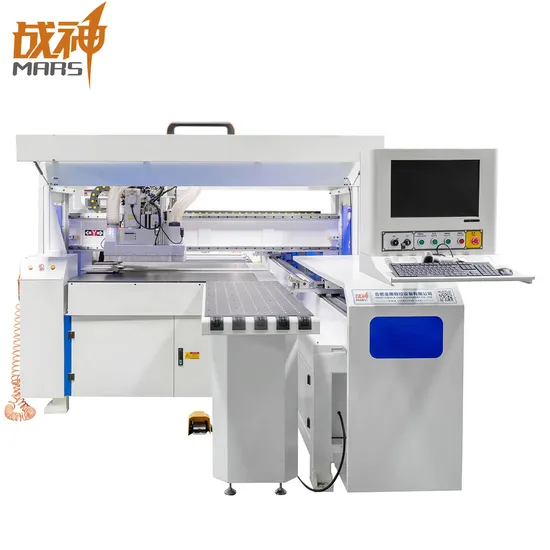

Mars CNC Six Sided Drilling Machining Center Gn1200h CNC Boring Machine

Product Description

MARS CNC Six Sides Boring Machine GN1200H
Product Description
Feature
Pneumatic Double Clamp Feeding Device
Precision Upper Drilling Bag Set
Precision Down Side Drillling Bank
Air Floating Feeding Platform

Large Torsion Reducer
Products Parameter

Working Stroke	X/Y/A/Z Axis	1250/ 1490/ 80/ 50 mm
Max. Positioning Speed	X/Y/A/Z Axis	80/ 60/ 30/ 30 m/min
Borehole Combination Device	Vertical Drills	X-axis direction 7 groups, Y-axis direction 9 groups
	Horizontal Drills	1 left + 1 right + 2 front + 2 rear
	Drill Unit Motor Power	2.2kw, 4000rpm
Engrave Milling Spindle	Spindle Collect	Er32
	Tool Holder	Φ10
	Spindle Motor Power	2.2kw
	Spindle Speed	24000rpm
Processing Size Range	Mini/ Max Sheet Width	50mm/ 1200mm
	Mini Sheet Length	200mm
	Max Sheet Thickness	50mm
Other Paramter	Total Power	7.5kw
	Working Voltage	AC380/50HZ
	Workinig Pressure	0.6-0.8Mpa
	Machine Diemsnion	3500*2100*1700mm

Application:
It's a powerful drilling machine, can accomplish all five sided holes and slots at one processing.It can completely substitute the traditional panel saw and gang drill, and discard the dependence of traditional punching mode on the technical workers. Combined with professional production design sooftware, it achieves really intelligent producction, with high precision and fast speed.
Certificate
Exhibition
Factory Hall
Our Manufaturer
( With 15 years experience of production)
Hefei Aquila CNC Equipment Co., Ltd local in the beautiful hometown of Lord Bao- Hefei, Anhui Province. Covering an area of 20,000 square meters, we specialize in the innovation, manufacturing and trading of Panel Furniture Production Line Equipment, Nesting CNC Machining Center, ATC CNC Machining Center, Woodworking CNC Router, Stone CNC Router, Jade CNC Router, 4- AXIS Rotary CNC Router, Mold-making CNC Router etc. numerical control technology.
With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.
Our company adheres to the principle of "Customer First" and "Win- win Cooperation". Pursuing excellence and keeping making progress, we devote to developing the landmark brand in the CNC industry.

We are searching distributors all over the world. If you have any demands, welcome to contact us.

---
