Industrial leader Single color dose mixer plastic dosing device

Product Description

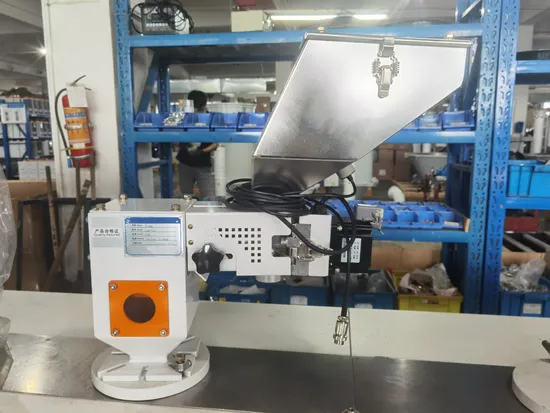

Single Color Dose Mixer

Performance characteristic
SWH series is applicable to the situtation that some kinds of material need accurate weighting and mixing by •With the function of permanent memory and storage.
•Use of brushless DC-motor,no need for maintenance.
•Use of micro-computer control,intelligentize to calculate accurately.
•Can satisfy the requirement of external signal input at the same time.
•The screw is handled with chrome to be durable.
•The modular structure is easy to assemble&disassemble,clean and exchange.
•Single color dose mixer's standard base equips hopper magnets to attract metal to protect the destorying of screw in injection machines.
•The stirrer is optinal for single color dose mixer,and should matched with stirrer controller to mix the material even

Specifications:
Model	Output (Kg/hr)	Motor Power (W)	Moter Speed (RPM)	Material Barrel (L)	Reduction Ratio	Screw Diameter (mm)	External Dimension LxWxH (mm)	Weight (kg)
SCM60-12	0.3-3	50	0-3000	10	30:1	12	520x590x355	16
SCM36-14	0.5-5	50	0-3000	10	30:1	14	520x590x355	16
SCM36-16	0.8-10	50	0-3000	10	30:1	16	520x590x355	16

---
