Milling Machine for Plastic PVC Grinder Machine LDPE Milling Machine/Grinder Machine/Pulverizer Machine SMP400 for PVC/PE ABS, EVA, PS,

US$1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SMP400
Application
Powder
Application Area
Plastic Processing
Certification
CE, ISO
Condition
New
Main Material
Plastic
Mixing Drum Shape
Circular Groove
Stirring Type
Spiral
Working
Shear Mixer
Outsize(mm)
20-80 Mesh
Rangle of Spindle Speed
2960-3108 r.p.m
Weight(Kg)
120-250kg/H
Voltage
220V
Key Selling Points
Automatic
Machinery Test Report
Provided
Feature
High Efficency Powder, Grinding Machine
Feeding Size(mm)
10-22mm
Power(Kw)
30
Type
Pulverizer
Core
Gear, Motor, Engine
Function
Powder Milling Grinding Making
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Continuous Operating
Warranty
One Year
Transport Package
Wooden Pallet
Specification
SMP400
Trademark
Hannshine
Origin
Shanghai China
HS Code
84778000
Production Capacity
100000

Product Description

Product Description 1)New automatic structure design, stainless steel pipe, stainless steel cyclone.
2)New bearing design and installation, more durable machine life.
3)New tool structure, improve the output and overcome the wear resistance of the tool.
4) Automatic feeding, automatic sorting, automatic discharging, automatic grinding of coarse material.
5)Easy installation and maintenance, open the door cover can be cleaned.
6) High output, low energy consumption, energy saving and environmental protection, no dust pollution.
7) Powder fineness 10 ~ 120 mesh arbitrary adjustment, and easy to adjust.
8)The cooling system of plastic mill adopts double cooling of wind and water,
Product Parameters
Model SMF300 SMF400 SMF500 SMF600 SMF800
Diameter of powder chamber (mm) 300mm 400mm 500mm 600mm 800mm
Motor power 11 30 37 55 75
Type of cooling water water water water water
Number of rotor 1set 1set 1set 1set 1set
Vibrating screen model 300 400 500 600 800
Output(kg) 50-120 120-250 150-300 300-500 350-650
Fineness(mo) 20-50 20-50 20-50 20-50 20-50

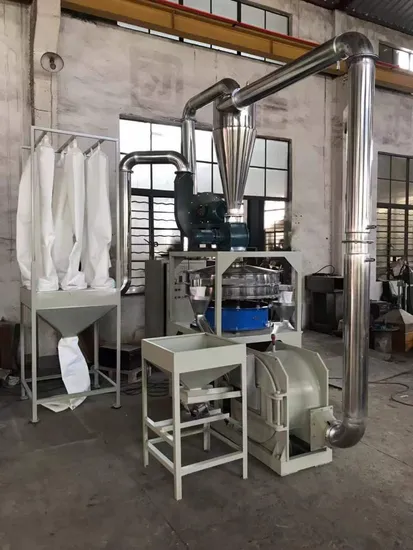

Detailed Photos
Packaging & Shipping Plastic film and wooden pallets
Seaport: Shanghai seaport
