Basic Info.
Type
Surface Grinding Machine
Cylindrical Grinder Type
Surface Grinding Machine
Certification
GS, CE, RoHS, ISO 9001
Name
Big Type Hydraulic Manual Wheelhead Moving Surface
Worktable Size
1250X630mm
Grinding Type
Surface Grinding for Metal
Chuck
Magnetic Chuck Table
Longitudinal Moving
Hydraulic
Grinding Wheel Size
400X40X127mm
Function
Flat Surface Grinding
Transport Package
Wooden Case
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
321.00cm * 190.00cm * 250.00cm
Package Gross Weight
6300.000kg
Product Description

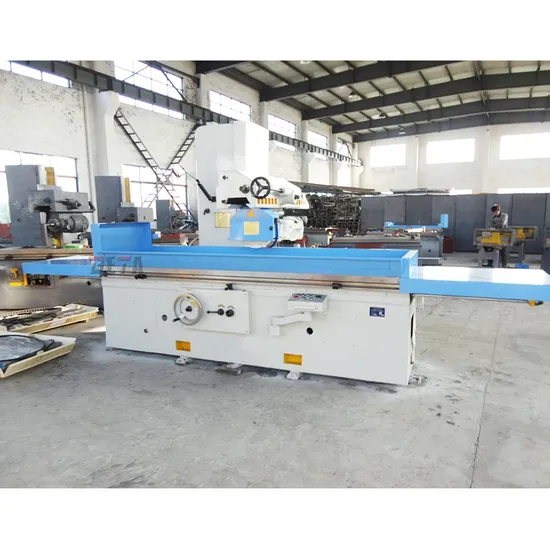

Big type hydraulic manual wheelhead moving surface grinding machine tools for sale
Standard configuration:
Digital readout system wheel flange standard grinding wheel balancing arbor balancing stand balance plate and screw coolant tank & water pipe Leveling wedge and bolt, wheel dresser stand with diamond pen, electromagnetic chuck open-end wrench, screwdriver, inner hexagon spanner, tool box
Model
| M7163*1250
|
Working table
| Table size(L * W)
| mm
| 1250*630
|
Max movement of working table(L * W)
| mm
| 1350
|
T-Slot(number * width)
|
| 5×18
|
Speed of working table
| m/min
| 3--25
|
Grinding head
| Max distance from spindle center to table surface
| mm
| 800
|
Max travel of grinding head Cross (Manual and hydraulic)
| mm
| 700
|
Max travel of grinding head Vertical (Manual)
| mm
| 600
|
Spindle speed
| rpm
| 1440
|
Wheel Size (Outer diameter * width * Inner diameter)
| mm
| φ400×40×φ127
|
Scale on the vertical handwheel
| mm
| 0.01
|
Grinding head feed per revolution of handwheel
| mm
| 1
|
Total power
| kw
| 12
|
Spindle motor
| Power
| kw
| 7.5
|
Speed
| r/min
| 1440
|
Rapid up and down motor
| Power
| kw
| 0.37
|
Speed
| r/min
| 1440
|
Oil pump motor
| Power
| kw
| 4
|
Speed
| r/min
| 960
|
Coolant pump motor
| Power
| kw
| 0.125
|
Speed
| r/min
| 2800
|
Oil pump
| Flow
| L/min
| 125
|
Working pressure
| MPa
| 1.5
|
Working precision
| The parallelism of working surface to base level
| mm
| 1000:0.015
|
Surface roughness
| µm
| Ra0.63
|
Weight
| N.W./G.W.
| kg
| 5600/6300
|
Overall dimension (L*W*H)
| mm
| 3210x1900x2500
|
>>
