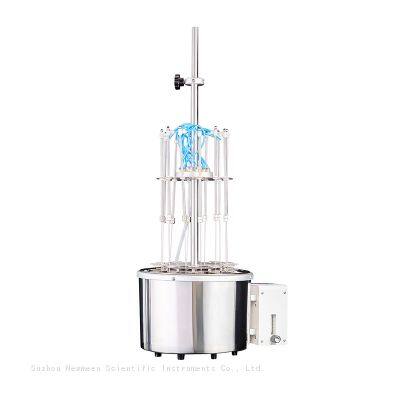

NEWMEEN SERIES WATER BATH NITROGEN BLOWING APPARATUS
Product model: NMDC-12W
The Water Bath Nitrogen Blowing Apparatus is a laboratory instrument designed to integrate the controlled application of nitrogen gas with the temperature control capabilities of a water bath. This dual-function apparatus serves as a versatile tool for various sample preparation processes, particularly in chemistry and molecular biology applications. Key features, functions, and applications include:
Features:
Nitrogen Gas Application: The apparatus incorporates a nitrogen blowing system that allows for precise and controlled application of nitrogen gas to facilitate sample concentration and drying.
Water Bath Temperature Control: Equipped with a water bath, the apparatus provides a stable and adjustable temperature environment, allowing users to control the conditions for sample evaporation and concentration.
Modular Design: Many models feature a modular design, providing flexibility for researchers to adapt the instrument to different laboratory setups and accommodate diverse sample types.
Functions:
Sample Concentration: The primary function of the Water Bath Nitrogen Blowing Apparatus is to concentrate samples through the combined action of controlled nitrogen gas flow and temperature-regulated water bath.
Solvent Evaporation: It efficiently evaporates volatile solvents from liquid samples, leaving behind concentrated analytes suitable for further analysis.
Temperature-Sensitive Sample Processing: The water bath component ensures gentle and controlled heating, making the apparatus suitable for processing temperature-sensitive samples in various applications.
Applications:
Analytical Chemistry: Widely used in analytical chemistry laboratories for the preparation of samples prior to analysis by techniques such as mass spectrometry, chromatography, and spectroscopy.
Molecular Biology Research: Applied in molecular biology labs for the concentration of nucleic acids, proteins, and other biomolecules in sample preparation processes.
Drug Development: Valuable in pharmaceutical research for concentrating and preparing samples for drug formulation studies and quality control processes.
Environmental Analysis: Used in environmental science laboratories for concentrating environmental samples before the analysis of contaminants and pollutants.
The Water Bath Nitrogen Blowing Apparatus offers a combined approach to sample concentration by integrating the controlled application of nitrogen gas with the temperature control capabilities of a water bath. Its versatility makes it an essential tool for researchers across different scientific disciplines, contributing to efficient and controlled sample preparation processes in the laboratory.
Product description:
The overall appearance of the instrument is elegant, with a circular structure and free rotation, which is convenient for the sample holder to enter and exit the water bath, and is easy to operate.
Product features:
1. Easy to operate
The overall instrument is beautiful and elegant, with a circular structure and free rotation, which is convenient for the sample holder to enter and exit the water bath, and is easy to operate.
2. Independently adjustable
free-rising needle valve tube and the independently adjustable needle valve can control the gas of each sample Needle gas flow rate.
3. LED digital display
LED digital display temperature and time, water bath temperature: room temperature +5°C -100°C.
4. stainless steel parts
All parts are stainless steel , all parts are anti-corrosion and organic solvents.
5. Burned protection
Built-in liquid level sensor to prevent dry burning by buzzer alarm.
6. wide application range
Wide application range: suitable for test tubes (diameter 10-29mm), conical flasks, centrifuge tubes, sample capacity 1-50mL.
7. fixed positioning
12 sample positions, each sample position has a number with spring test tube clip fixed position.
Technical parameters:
Power supply: AC100-120V/AC200-240V 50-60Hz
Time range: 1m-99h59m
Temperature range: Room temperature +5°C -100°C
Temperature uniformity@60°C: ≤ ±1°C
Heating rate (40°C -100°C) : ≤ 30m
Sample capacity: 12
beakers Test tube range: φ 0-29mm (liquid volume 1-50mL)
Gas connector outer diameter: φ7mm
Air needle length: 100mm
Maximum gas flow rate: 15L/Min Maximum gas pressure: 0.2Mpa
Inner tank size: ∅ 260x150mm Power: 1000W
>>
