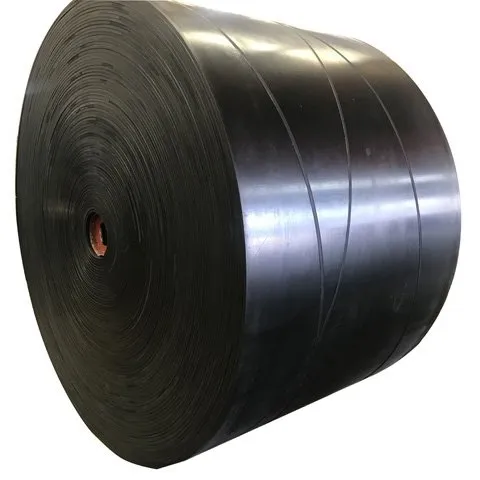

3 Ply Fabric Ep400/3 Heavy Duty Nylon Canvas Rubber Conveyor Belt Used for Mining Industry

Product Description

Product Description
rubber conveyor belt EP rubber conveyor belt is widely used by the mining and processing industries for transporting bulk or lumpy materials such as quarrying, ore, coke, aggregates, crops, sand, clinker, chemicals, construction materials, etc.

The EP is short for Polyester fabric, which includes polyester toward longitudinal(warp) and polyamide for latitude(weft), EP fabric plies are sandwiched between rubber skim coats for adhesion and load support. Bottom and top cover compounds are added for maximum protection of the belt carcass. The belt consisting of two to six EP fabric plies, EP rubber conveyor belt has the same merit as Nylon conveyor belt.
Advantages:
A.Lower longitudinal elongation.
B.Full resistance to mildew, moisture and rotting.
C.Good flexibility and trough ability.
D.Short take-up lengths.
E.Suitable for middle and long-distance transportation of higher load and speed.
Details:
belt thickness: 3+1.5,4+2, 5+2, 6+2, 8+3, 3+0 etc
Belt width: 400-2600mm
belt length: 50-400m
tensile strength: 8-25mpa
Application: stone, cement plant, coal mine, copper mine
Edge: moulded edge or cut edge

The common ep conveyor belt type could be:
2-ply belts: 315/2 400/2 500/2 630/2 800/2
3-ply belts: 500/3 630/3 800/3 1000/3 1250/3
4-ply belts: 630/4 800/4 1000/4 1250/4 1600/4
5-ply belts: 800/5 1000/5 1250/5 1600/5 2000/5
Quality control we have several professional quality inspectors to make sure all the belts meet customer's requirement before shipping goods.
before production
we will check to use correct raw material to make belt before manufacturing
during production
we will check production line to avoid any thing dropped on the belt
after production
we will check the thickness&width&length of each belt to ensure enough size, after that, then we will check the belt tensile strength, break resistance, abrasion loss, adhesion.
Packaging & Shipping packing: we usually use pp bag for plain belt, and metal rack for chevron belt and sidewall belt.
delivery: 2 weeks after getting your prepayment
Other type conveyor belt we can make these kinds of rubber conveyor belts as below.
chevron conveyor belt
sidewall conveyor belt
steel cord conveyor belt
rough top conveyor belt
pipe conveyor belt

Installation Instructions our belt is widely used in minning industry, construction industry, life , agriculture field, etc
mining industry like transport copper ore, stone, coal.
construction industry like transport gravel, sand, cement, wood, concrete.
agriculture field like transport fertilizer, crops
life area like transport life garbage,airport parcel.

Related other product we make we also have below products can make
rubber sheet SBR/NBR/CR/EPDM
pulley lagging sheet
coin rubber mat/diamond rubber mat/checker rubber mat
latex rubber sheet

---
